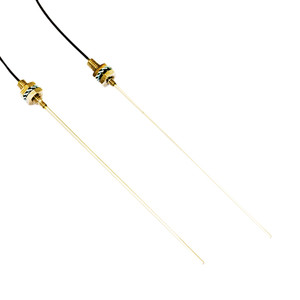

Datasensing CF/CA4-05 Sensors
Datasensing
$101.93
The Datasensing CF/CA4-05 Sensors are designed for precision and reliability, featuring a 0.5 m optical fibre scanner that is not cutable. These sensors offer a wide range of models, including ultra-slim options for detecting small objects, long-distance capabilities, and spiral tubes for easy handling. The sensors are equipped with a variety of flexible fibre heads, each with a protective sleeve, and a selection of cutting fibre units to suit diverse applications. With an IP67 protection degree, these sensors are built to withstand harsh environments. They are compatible with the SSF, FS1, FX3, and FX4 series, offering varying detection distances from 15 mm to 80 mm. The sensors operate on the principle of diffuse reflection, utilizing plastic optical fibres with an axial optic position. They are designed to function in extreme temperatures ranging from -40°C to +70°C. The optical fibre core has a diameter of 0.5 mm, and the head is shaped in M4 with a sleeve, made from durable nickel-plated brass. Additional accessories, such as the AF/1A2, can be ordered separately to enhance functionality.
- Distance with SSF:
- 15 mm
- Distance with FS1:
- 15 mm
- Distance with FX3:
- 60 mm
- Distance with FX4:
- 80 mm
- Distance with F1R:
- 40 mm
- Function Principle:
- Diffuse reflection
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 0,5
- Ø optical fibre core:
- 0,5 mm
- Head shape:
- M4 with sleeve
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Accessories to be ordered separately:
- AF/1A2
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
