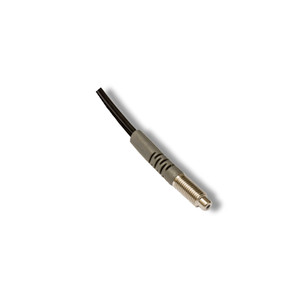

The Datasensing CF/DR-M6-210 Sensors are designed for precision and versatility, featuring a plastic optical fibre with a diffuse function principle and a 90° optic position. The M6 head shape is crafted from durable stainless steel, ensuring robust performance in various environments. With a fibre length of 2 meters and a core diameter of 1 mm, these sensors are cuttable to suit specific application needs. They offer a wide range of models, including ultra-slim options for detecting small objects and spiral tubes for easy handling over long distances. The sensors are compatible with SSF, FS1, FX3, and FX4 series, providing varying detection distances from 45 mm to 220 mm. Designed to withstand harsh conditions, they operate efficiently within a temperature range of -55°C to +70°C and boast an IP67 protection degree for mechanical and environmental resilience. Ideal for applications requiring flexible fibre heads and cutting fibre units, these sensors are CE approved, ensuring compliance with international safety standards.
- Distance with SSF:
- 60 mm
- Distance with FS1:
- 45 mm
- Distance with FX3:
- 185 mm
- Distance with FX4:
- 220 mm
- Distance with F1R:
- 100 mm
- Distance with FY2:
- 60 mm
- Distance with FY3:
- 110 mm
- Function Principle:
- Diffusione diretta
- Description:
- Plastic optical fibres
- Optic position:
- 90°
- Fibre lengh (m):
- 2
- Ø optical fibre core:
- 1 mm
- Head shape:
- M6
- Optical fibre material:
- PE, plastic
- Head material:
- stainless steel
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
