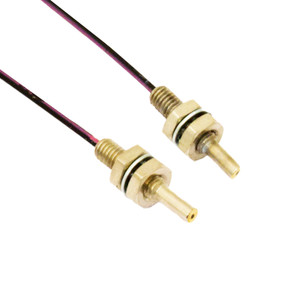

Datasensing CF/RA4-05 Sensors
Datasensing
$114.08
The Datasensing CF/RA4-05 Sensors are designed for precision and reliability, featuring optical fibres that are not cutable, with an emitter and receiver configuration over a 0.5 m length. These sensors offer a wide range of models, including ultra-slim designs for detecting small objects, options for long-distance sensing, and spiral tubes for easy handling. The sensors are equipped with a variety of flexible fibre heads, complete with sleeves, and cutting fibre units to suit diverse applications. With a robust IP67 protection degree, these sensors are built to withstand harsh environments. They are compatible with the SSF, FS1, FX3, and FX4 series, offering varying distance capabilities from 30 mm to 250 mm. The sensors operate efficiently in temperatures ranging from -40°C to +55°C, ensuring performance in extreme conditions. The optical fibres are made from durable PE plastic, with a core diameter of 0.5 mm, and the head is constructed from nickel-plated brass for enhanced durability. Accessories such as the AF/1A2 can be ordered separately to complement the sensor's functionality. CE approved, these sensors are a reliable choice for a wide range of industrial applications.
- Distance with SSF:
- 30 mm
- Distance with FS1:
- 30 mm
- Distance with FX3:
- 150 mm
- Distance with FX4:
- 250 mm
- Distance with F1R:
- 100 mm
- Function Principle:
- Emitter + Receiver
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 0,5
- Ø optical fibre core:
- 0,5 mm
- Head shape:
- M4 with sleeve
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Accessories to be ordered separately:
- AF/1A2
- Mechanical Protection:
- IP67
