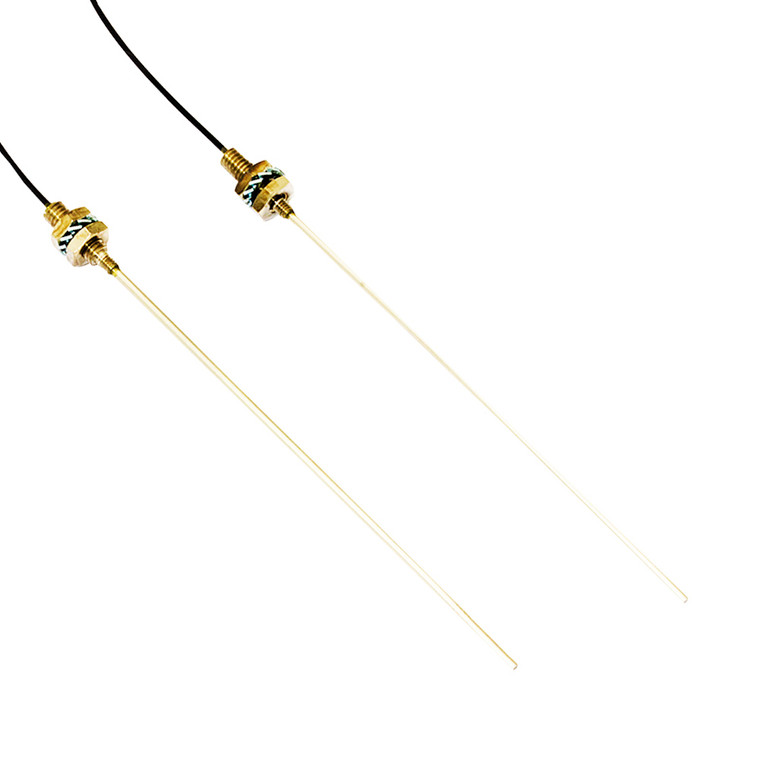

Datasensing CF/RA4-10 Sensors
Datasensing
$120.14
The Datasensing CF/RA4-10 Sensors are designed for precision and reliability in various industrial applications. These optical fibre sensors feature a non-cuttable emitter and receiver with a 1-meter length, ensuring durability and consistent performance. The sensors offer a wide range of models, including ultra-slim designs for detecting small objects, options for long-distance sensing, and spiral tubes for easy handling. The flexible fibre heads come with a protective sleeve, and the sensors are compatible with a variety of cutting fibre units. With an IP67 protection degree, these sensors are built to withstand harsh environments. They are connectable with the SSF, FS1, FX3, and FX4 series, providing versatile distance capabilities ranging from 30 mm to 250 mm. The sensors operate efficiently in temperatures from -40°C to +55°C, making them suitable for extreme conditions. Constructed with a plastic optical fibre core and nickel-plated brass head, these sensors ensure robust performance. Additional accessories, such as the AF/1A2, can be ordered separately to enhance functionality. Approved with CE certification, the Datasensing CF/RA4-10 Sensors are a reliable choice for your sensing needs.
- Distance with SSF:
- 30 mm
- Distance with FS1:
- 30 mm
- Distance with FX3:
- 150 mm
- Distance with FX4:
- 250 mm
- Distance with F1R:
- 100 mm
- Function Principle:
- Emitter + Receiver
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 1
- Ø optical fibre core:
- 0,5 mm
- Head shape:
- M4 with sleeve
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Accessories to be ordered separately:
- AF/1A2
- Mechanical Protection:
- IP67
