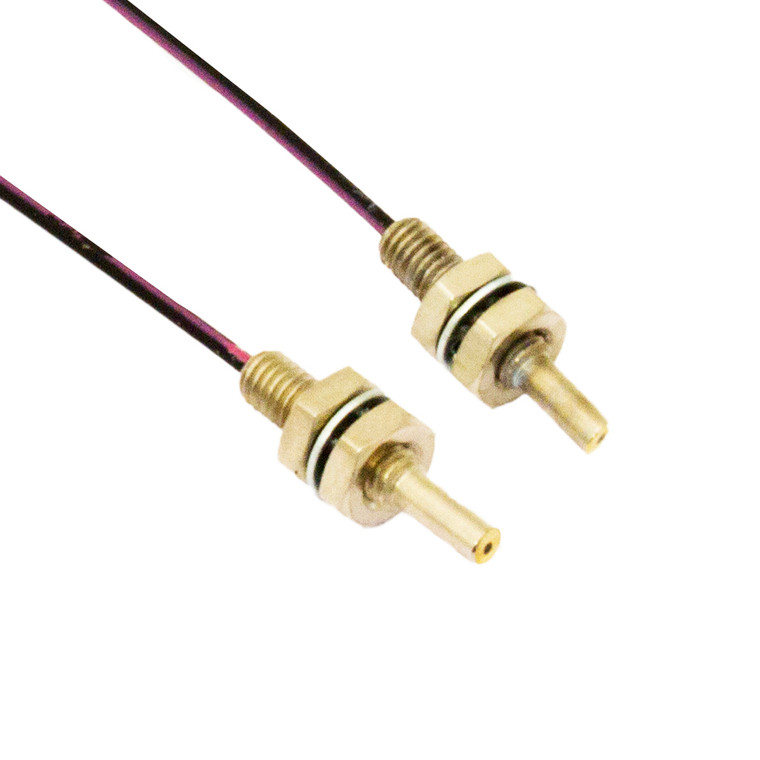

Datasensing CF/RA7-10 Sensors
Datasensing
$88.80
The Datasensing CF/RA7-10 Sensors are designed for precision and reliability, featuring a 1-meter optical fibre that is not cutable, ensuring durability and consistent performance. These sensors are equipped with a wide range of models, including ultra-slim designs for detecting small objects, options for long-distance sensing, and spiral tubes for easy handling. The flexible fibre heads come with protective sleeves, and there are various cutting fibre units available to suit different applications. With a robust IP67 protection degree, these sensors are built to withstand harsh environments. They are compatible with the SSF, FS1, FX3, and FX4 series, offering versatile connectivity options. The sensors are CE approved, ensuring compliance with European safety standards.
Key specifications include:
- Distance capabilities: SSF and FS1 up to 30 mm, FX3 up to 150 mm, FX4 up to 250 mm, and F1R up to 100 mm.
- Function principle: Emitter + Receiver
- Optic position: Axial
- Operating temperature range: -40°C to +55°C
- Fibre length: 1 meter
- Optical fibre core diameter: 0.5 mm
- Head shape: M3
- Materials: Optical fibre made of PE plastic, head made of nickel-plated brass
- Degree of protection: IP67
- Accessories available separately: AF/1A2
These sensors are ideal for applications requiring high precision and reliability in challenging conditions.
- Distance with SSF:
- 30 mm
- Distance with FS1:
- 30 mm
- Distance with FX3:
- 150 mm
- Distance with FX4:
- 250 mm
- Distance with F1R:
- 100 mm
- Function Principle:
- Emitter + Receiver
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 1
- Ø optical fibre core:
- 0,5 mm
- Head shape:
- M3
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Accessories to be ordered separately:
- AF/1A2
- Mechanical Protection:
- IP67
