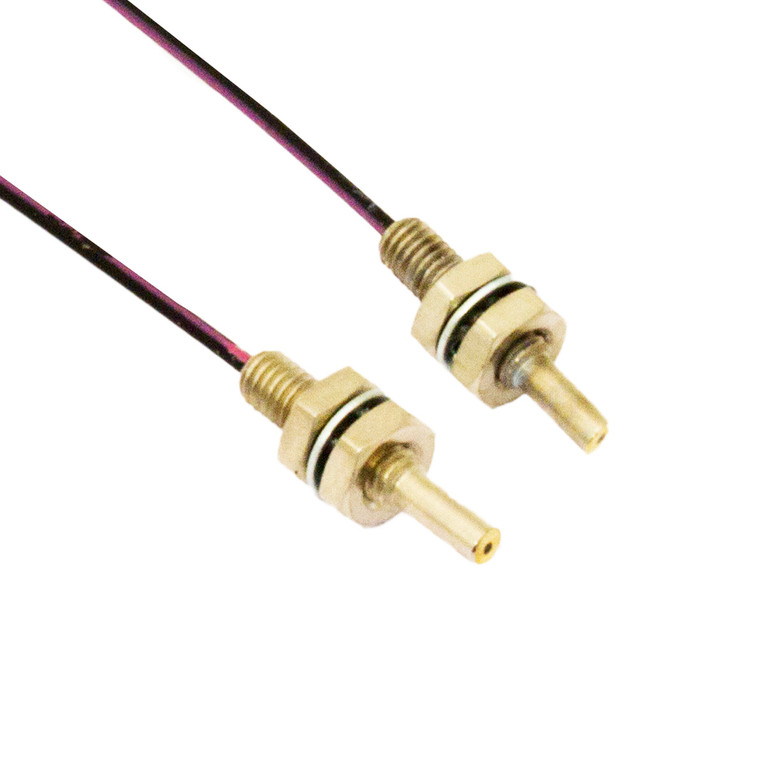

Datasensing CF/RA7-30 Sensors
Datasensing
$119.33
The Datasensing CF/RA7-30 Sensors are designed for precision and reliability in various industrial applications. These optical fibre sensors feature a non-cuttable emitter and receiver with a 3-meter length, ensuring durability and consistent performance. The sensors offer a wide range of models, including ultra-slim designs for detecting small objects, options for long-distance sensing, and spiral tubes for easy handling. With a flexible selection of fibre heads and cutting units, these sensors are adaptable to diverse needs. They boast a robust IP67 protection degree, making them suitable for harsh environments. Compatible with SSF, FS1, FX3, and FX4 series, they provide varying distance capabilities, from 30 mm to 250 mm, depending on the series. The sensors operate efficiently in temperatures ranging from -40°C to +55°C, with a mechanical protection rating of IP67. Constructed with a 0.5 mm Ø optical fibre core and a nickel-plated brass head, these sensors are both durable and efficient. Accessories such as the AF/1A2 are available for separate purchase to enhance functionality. Ideal for applications requiring precise emitter and receiver functions, these plastic optical fibres are positioned axially for optimal performance.
- Distance with SSF:
- 30 mm
- Distance with FS1:
- 30 mm
- Distance with FX3:
- 150 mm
- Distance with FX4:
- 250 mm
- Distance with F1R:
- 100 mm
- Function Principle:
- Emitter + Receiver
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 3
- Ø optical fibre core:
- 0,5 mm
- Head shape:
- M3
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Accessories to be ordered separately:
- AF/1A2
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
