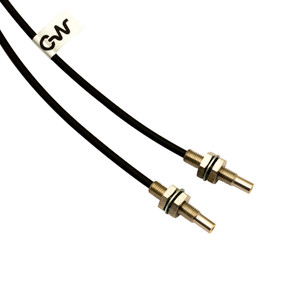

Datasensing CF/RB6-10 Sensors
Datasensing
$65.84
The Datasensing CF/RB6-10 Sensors are designed for precision and versatility, featuring cutable optical fibre emitters and receivers with a length of 1 meter. These sensors offer a wide range of models, including ultra-slim designs for detecting small objects, options for long-distance sensing, and spiral tubes for easy handling. The flexible fibre heads come with protective sleeves, and the units are easily cuttable to suit various applications. With a robust IP67 protection degree, these sensors are built to withstand harsh environments. They are compatible with the SSF, FS1, FX3, and FX4 series, providing varying sensing distances from 120 mm to 900 mm. The sensors operate efficiently in temperatures ranging from -40°C to +70°C, making them suitable for diverse industrial settings. Constructed with a 1 mm Ø optical fibre core made of PE plastic and a nickel-plated brass head, these sensors ensure durability and reliability. Approved with CE certification, the Datasensing CF/RB6-10 Sensors are an ideal choice for precise and adaptable optical sensing solutions.
- Distance with SSF:
- 120 mm
- Distance with FS1:
- 120 mm
- Distance with FX3:
- 600 mm
- Distance with FX4:
- 900 mm
- Distance with F1R:
- 410 mm
- Function Principle:
- Emitter + Receiver
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 1
- Ø optical fibre core:
- 1 mm
- Head shape:
- M4
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
