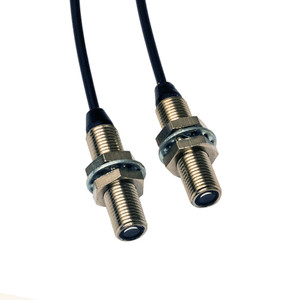

Datasensing CF/RB9-10 Sensors
Datasensing
$136.27
The Datasensing CF/RB9-10 Sensors are designed for precision and versatility, featuring cutable optical fibre emitters and receivers with a length of 1 meter. These sensors offer a wide range of models, including ultra-slim designs for detecting small objects, options for long-distance sensing, and spiral tubes for easy handling. The flexible fibre heads come with protective sleeves, and the cutting fibre units provide adaptability for various applications. With a robust IP67 protection degree, these sensors are built to withstand harsh environments. They are compatible with the SSF, FS1, FX3, and FX4 series, offering different sensing distances: 1,200 mm with SSF and FS1, 8,000 mm with FX3, and 10,000 mm with FX4. The sensors operate efficiently in temperatures ranging from -40°C to +70°C, making them suitable for diverse industrial settings. Constructed with a Ø 6 head shape and nickel-plated brass material, the optical fibres are made of durable PE plastic, ensuring long-lasting performance. Approved with CE certification, these sensors are a reliable choice for precise optical sensing needs.
- Distance with SSF:
- 1.200 mm
- Distance with FS1:
- 1.200 mm
- Distance with FX3:
- 8.000 mm
- Distance with FX4:
- 10.000 mm
- Distance with F1R:
- 4.000 mm
- Function Principle:
- Emitter + Receiver
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 1
- Ø optical fibre core:
- 1 mm
- Head shape:
- Ø 6 with lenti
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
