Datasensing CF/TA-H2-210 Sensors
Datasensing
$195.24

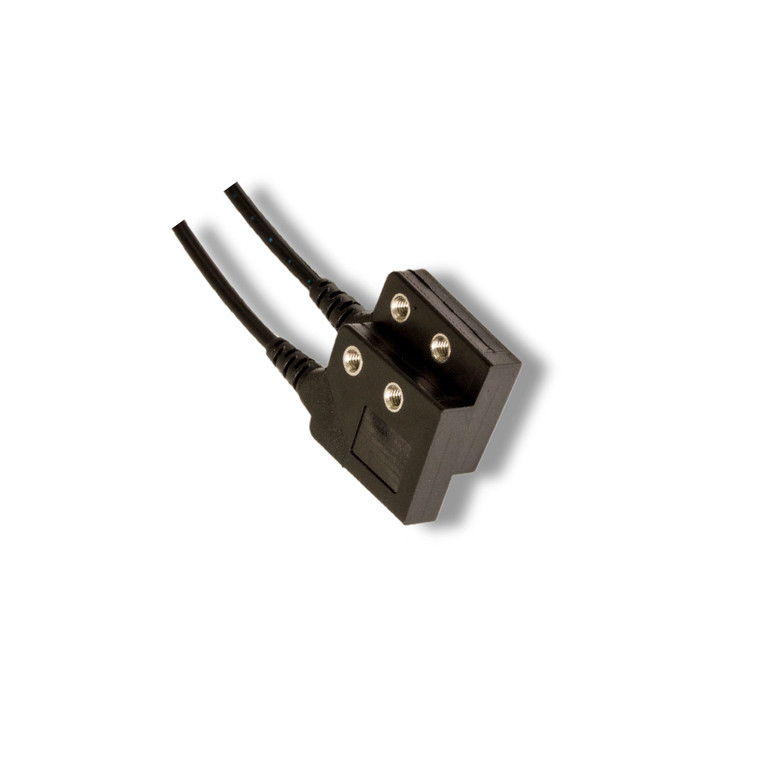

The Datasensing CF/TA-H2-210 Sensors are designed with precision and versatility in mind, featuring a robust plastic optical fibre construction. These sensors include both an emitter and receiver, arranged axially, and are ideal for applications requiring a compact area coverage with a height of 20mm and a length of 2m. The core of the fibre measures 1mm in diameter and is not cuttable, ensuring consistent performance.
These sensors offer a wide range of models to suit various needs, from ultra-slim designs for detecting small objects to options capable of handling long distances. The spiral tube design enhances handling flexibility, while the diverse selection of fibre heads, complete with sleeves, provides adaptability for different applications. Additionally, the sensors are compatible with a variety of cutting fibre units.
With an IP67 protection degree, these sensors are built to withstand harsh environments, offering reliable performance in temperatures ranging from -55°C to +70°C. They are connectable with the SSF, FS1, FX3, and FX4 series, providing distances of up to 950mm depending on the series used. The sensors are CE approved, ensuring compliance with international safety standards.
The head of the sensor measures 19 x 6 x 25 mm and is constructed from durable plastic, matching the optical fibre material. This combination of features makes the Datasensing CF/TA-H2-210 Sensors a versatile and reliable choice for a wide range of industrial and commercial applications.
- Distance with SSF:
- 430 mm
- Distance with FS1:
- 45 mm
- Distance with FX3:
- 730 mm
- Distance with FX4:
- 950 mm
- Distance with F1R:
- 510 mm
- Distance with FY2:
- 400 mm
- Distance with FY3:
- 430 mm
- Function Principle:
- Area (Emitter + Receiver)
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 2
- Ø optical fibre core:
- 1 mm
- Head shape:
- 19 x 6 x 25 mm
- Optical fibre material:
- plastic
- Head material:
- plastic
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
