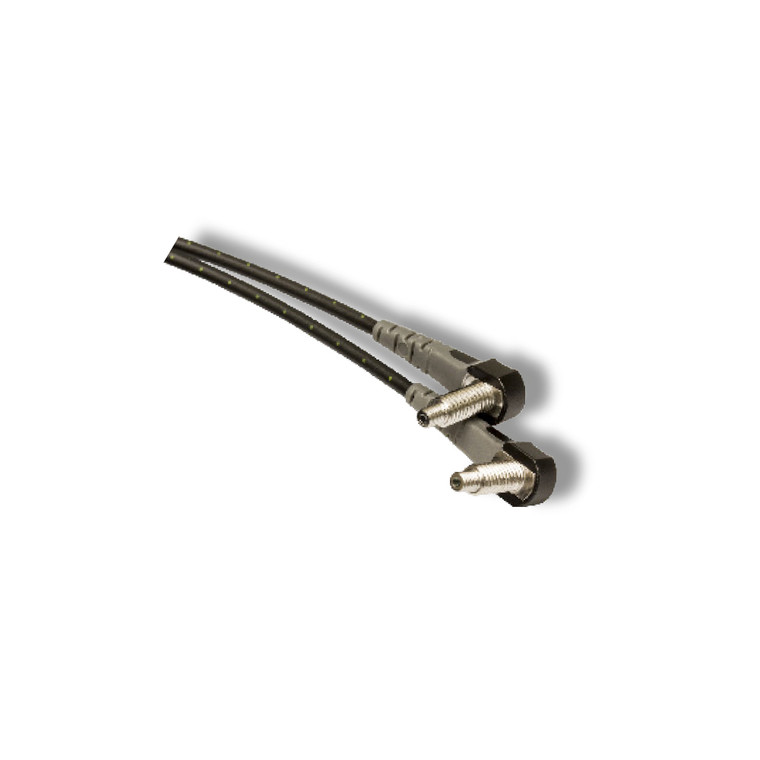

Datasensing CF/TR-M4-210 Sensors
Datasensing
$139.24
The Datasensing CF/TR-M4-210 Sensors are designed for precision and versatility, featuring a plastic optical fibre with both emitter and receiver capabilities. The sensor's 90° optic position and M4 head shape make it ideal for a variety of applications. With a length of 1 meter and a core diameter of 1 mm, the fibre is cuttable to suit specific needs. The sensor offers a wide range of models, including ultra-slim options for detecting small objects and spiral tubes for handling long distances. It is compatible with SSF, FS1, FX3, and FX4 series, providing varying distance capabilities from 140 mm to 900 mm. The sensor is built to withstand harsh environments with an IP67 protection degree and operates efficiently in temperatures ranging from -55°C to +70°C. The optical fibre is made from durable PE plastic, while the head is constructed from stainless steel, ensuring long-lasting performance. Ideal for industrial applications, this sensor is CE approved, guaranteeing quality and reliability.
- Distance with SSF:
- 275 mm
- Distance with FS1:
- 140 mm
- Distance with FX3:
- 680 mm
- Distance with FX4:
- 900 mm
- Distance with F1R:
- 480 mm
- Distance with FY2:
- 300 mm
- Distance with FY3:
- 320 mm
- Function Principle:
- Emitter + Receiver
- Description:
- Plastic optical fibres
- Optic position:
- 90°
- Fibre lengh (m):
- 2
- Ø optical fibre core:
- 1 mm
- Head shape:
- M4
- Optical fibre material:
- PE, plastic
- Head material:
- Stainless steel
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
