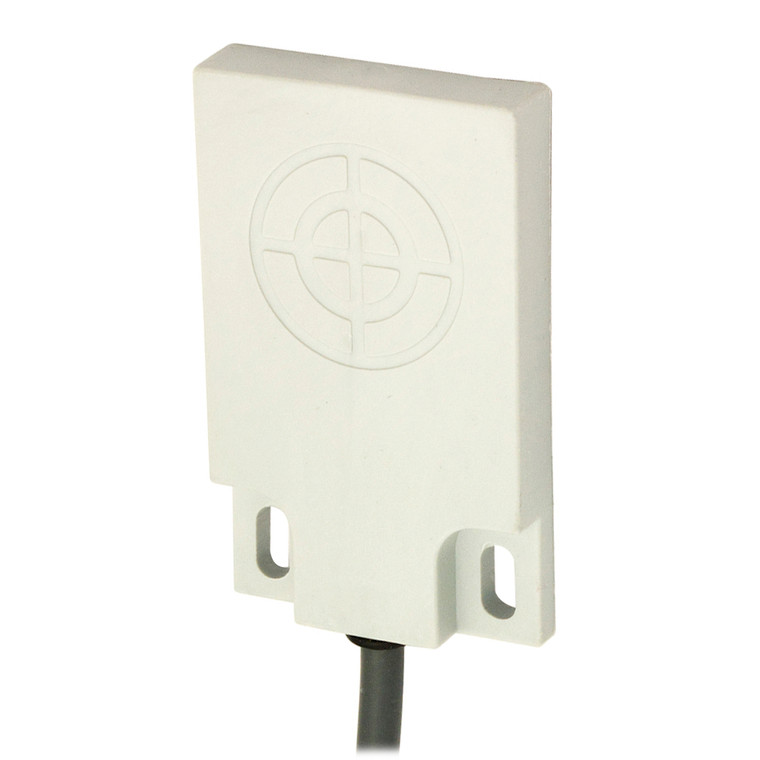

Datasensing CQ50/CN-1A Sensors
Datasensing
$53.67
The Datasensing CQ50/CN-1A Sensors are high-performance capacitive sensors designed for precise detection tasks. Featuring a cubic plastic housing, these sensors offer a nominal sensing distance of 5mm and are equipped with an NPN normally closed (NC) output. With a compact dimension of 50x30x7mm, they are ideal for space-constrained applications. The sensors operate on a 5V DC supply and have a low no-load supply current of ? 10mA, ensuring energy efficiency.
Built to withstand challenging environments, the CQ50/CN-1A sensors boast an IP67 mechanical protection rating, making them dust-tight and water-resistant. They are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance and longevity. The sensors feature a 2m PVC cable for easy connectivity and are constructed with durable noryl material for both the housing and active head.
With a switching frequency of 10Hz and a repeat accuracy of 5%, these sensors provide consistent and reliable operation. The thermal drift of Sr is maintained at < 20%, and the hysteresis is ? 20%, ensuring stable performance across varying temperatures. The sensors are CE approved and comply with EMC compatibility standards IEC 60947-5-2, making them suitable for a wide range of industrial applications. Operating efficiently within a temperature range of 0 to 60°C, the Datasensing CQ50/CN-1A Sensors are a robust and dependable choice for your sensing needs.
- Nominal sensing distance:
- 5mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- NO
- Hysteresis:
- ? 20%
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 10Hz
- Operating Voltage:
- 5Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ?50mA
- Leakage current:
- ? 100µA
- Output voltage drop:
- 1,5Vmax @ IL=50mA
- Max ripple content:
- ?10%
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Shielded
- Weight:
- 70g
- Housing Material:
- noryl
- Connections:
- 2m PVC cable
- Active Head Material:
- noryl
- Storage temperature:
- -30°C +75°C
- Diameter/Dimension:
- 50x30x7mm
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Dimensions:
- 50x30x7mm
- Operating Temperature:
- 0 60°C (without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
