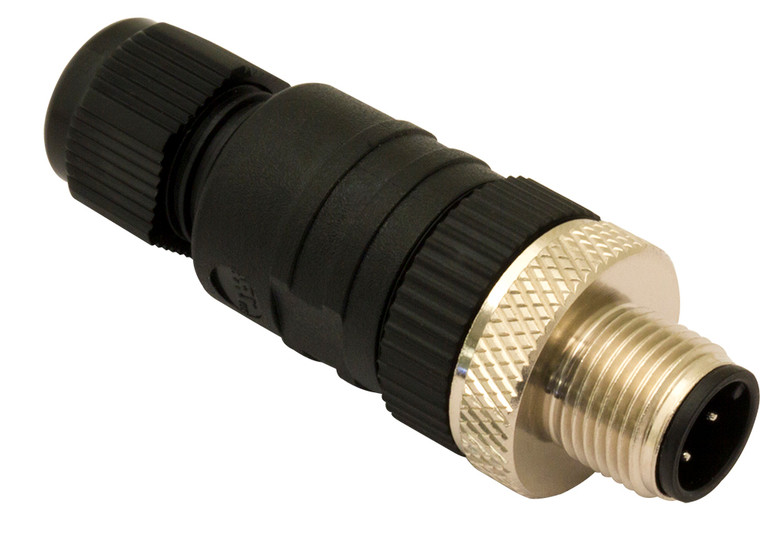

Connector Conn.with terminals M12 4 poles male Axial
- Fixing:
- screw terminals
- Rated current:
- 4 A
- Led:
- no
- Wires:
- 4
- Insulation resistance:
- ? 100 M?
- Contact resistance:
- ? 5 m?
- Rated voltage:
- 250 V
- Connections:
- Field attachable
- Head type:
- Axial
- Plug:
- M12
- Outer diameter:
- 3 mm ... 6,5 mm
- Stripping lenght of the sheath:
- 20 mm
- Conductors section:
- Max. 0,75 mm²
- Model:
- Male
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
