Datasensing CX0E1RP/05-016V Sensors
Datasensing
$922.04
The Datasensing CX0E1RP/05-016V Sensors are advanced area sensors designed for precise detection and measurement applications. Featuring intrinsic optical synchronization and full cross optical beams, these sensors offer a pitch of 5mm and a controlled height of 160mm, with a nominal sensing distance ranging from 0.3 to 3 meters. The sensors are equipped with 33 rays and can detect objects as small as Ø 1.5mm. They provide high switching frequency at 75Hz and are available with PNP output type, configurable for NO/NC functions.
Operating on a voltage range of 16.8 to 30Vdc, these sensors ensure reliable performance with a no-load supply current of ?330mA and a load current of <100mA. The sensors are protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring durability and safety in various environments. The housing is made of robust aluminum, with an active head material of PMMA, and the sensors are designed to withstand operating temperatures from -10°C to +55°C.
The sensors come with LED indicators for easy status monitoring and are compatible with IEC EN 60947-5-2 standards for interference to external light. They are also CE and cULus approved, with an IP67 degree of protection, making them suitable for demanding industrial applications. The package includes an ST151 fixing kit for easy installation. With dimensions of 169x36x20mm and a weight of 450g, these sensors are compact and easy to integrate into existing systems.
- Nominal sensing distance:
- 0,3 3m
- Beams space:
- 5mm
- controlled height:
- 160mm
- minimum detectable object:
- Ø 1,5mm
- number of rays:
- 33
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- PNP
- Output Function:
- NO/NC
- Switching frequency:
- 75Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- 200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (850nm)
- Interference to external light:
- IEC EN 60947-5-2
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 20mm x 169mm x 35mm
- Weight:
- 450g
- Housing Material:
- Aluminium

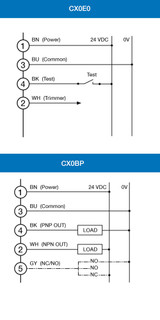

- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 169x36x20
- Mechanical Protection:
- IP67
