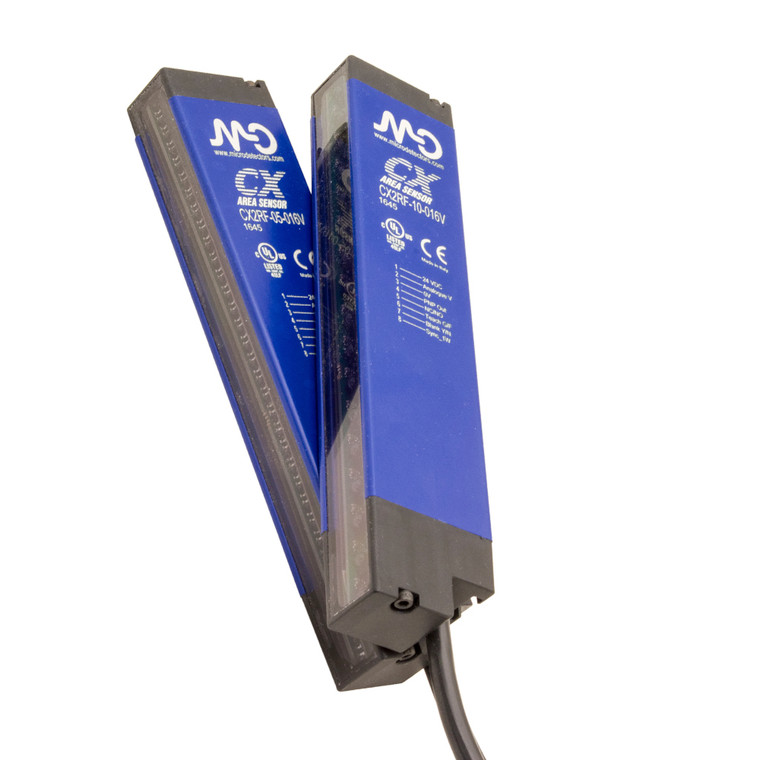

Datasensing CX2E0RA/05-048V Sensors
Datasensing
$1,944.12
The Datasensing CX2E0RA/05-048V Sensors are advanced area sensors designed for precision and reliability in various industrial applications. Featuring a one-cable synchronization system, these sensors offer a pitch of 5mm and a control height of 480mm, ensuring accurate detection with a nominal sensing distance ranging from 0.3 to 3 meters. The sensors utilize parallel beams and floating crossbeams with variable amplitude, providing maximum operating distances of up to 3 meters for a 5mm pitch.
Equipped with both digital outputs (NPN and PNP) and analogue outputs (current 4
20mA and voltage 0..10V), these sensors offer versatile output options, including a mix of digital PNP and analogue voltage output. The teach-in adjustment feature allows for two levels of sensitivity adjustment, while the blanking function enhances operational flexibility.
Constructed with a robust aluminium housing and PMMA active head material, the sensors are designed to withstand harsh environments, with an IP67 degree of protection and operating temperatures ranging from -10°C to +55°C. The sensors are equipped with LED indicators for easy status monitoring and include short-circuit and reverse polarity protection for enhanced safety.
With approvals from CE and cULus, and compliance with IEC 60947-5-2 standards for EMC compatibility, these sensors are a reliable choice for demanding industrial settings. The package includes an ST151 fixing kit for easy installation.
- Nominal sensing distance:
- 0,3 3m
- Beams space:
- 5mm
- controlled height:
- 480mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 97
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- 0,,,10V + 4,,,20mA
- Output Function:
- positive/negative slope
- Switching frequency:
- 12,3Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- < 3s
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (850nm)
- Interference to external light:
- IEC EN 60947-5-2
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 20mm x 489mm x 35mm
- Weight:
- 1200g
- Housing Material:
- Aluminium
- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 489x36x20
- Mechanical Protection:
- IP67
