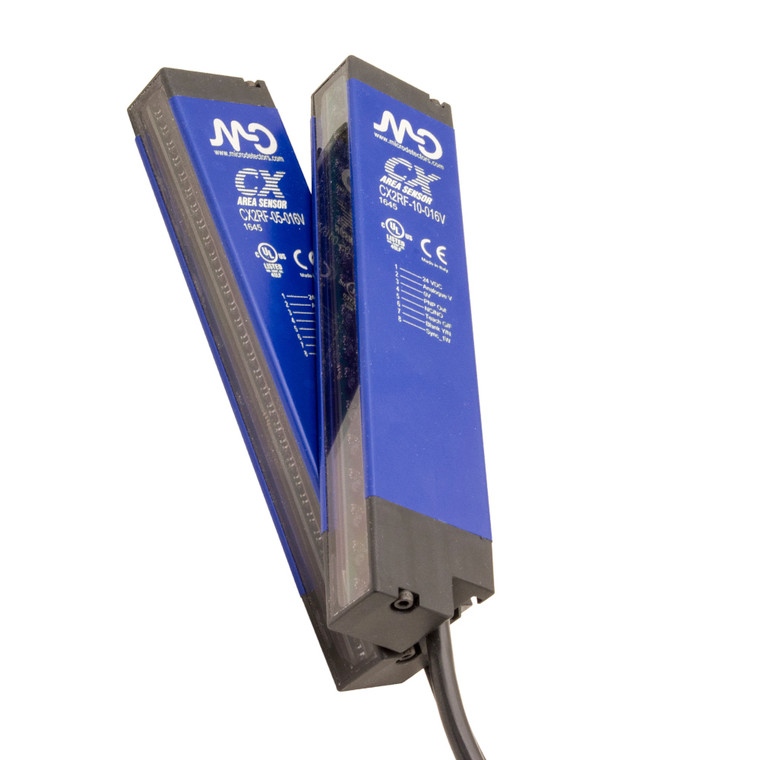

The Datasensing CX2E0RA/10-032VTB Sensors are designed for precision and reliability in industrial applications. Featuring a nominal sensing distance of 0.3 to 6 meters, these area sensors utilize a one-cable synchronization system with a beam spacing of 10mm and a controlled height of 320mm. With a minimum detectable object size of Ø 10mm and 33 parallel beams, they ensure accurate detection and measurement. The sensors offer a teach-in by wire sensitivity adjustment and operate on an emitter/receiver principle, providing both positive and negative slope output functions. They support a switching frequency of 33.7Hz and operate within a voltage range of 16.8 to 30Vdc, with a no-load supply current of ?330mA and a load current of <100mA.
The sensors are equipped with LED indicators in blue, red, and yellow for the emitter, and green, red, and yellow for the receiver, ensuring clear status visibility. They are built with robust aluminium housing and PMMA active head material, offering mechanical protection rated at IP67. The sensors are designed to withstand operating temperatures from -10°C to +55°C and storage temperatures from -25°C to +60°C. They come with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety. The package includes an ST151 fixing kit for easy installation. Certified with CE and cULus approvals, and compliant with IEC 60947-5-2 standards for EMC compatibility, these sensors are ideal for demanding environments.
- Nominal sensing distance:
- 0,3 6m
- Beams space:
- 10mm
- controlled height:
- 320mm
- minimum detectable object:
- Ø 10mm
- number of rays:
- 33
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- 0,,,10V + 4,,,20mA
- Output Function:
- positive/negative slope
- Switching frequency:
- 33,7Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- < 3s
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 750g
- Housing Material:
- Aluminium
- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 329x36x20
- Operating Temperature:
- -10°C + 55° C (without freeze)
- Mechanical Protection:
- IP67
