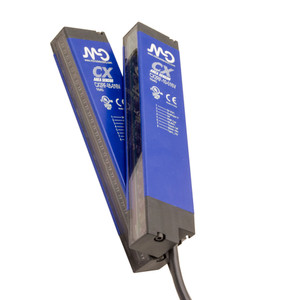

Datasensing CX2E0RA/10-064V Sensors

The Datasensing CX2E0RA/10-064V Sensors are advanced area sensors designed for precision and reliability in various industrial applications. Featuring a one-cable synchronization system, these sensors offer a pitch of 10mm and a controlled height of 640mm, with a nominal sensing distance ranging from 0.3 to 6 meters. The sensors utilize parallel beams and floating crossbeams with variable amplitude, ensuring accurate detection with a minimum detectable object size of Ø 10mm. Equipped with digital outputs (NPN and PNP) and analogue outputs (current 4…20mA and voltage 0..10V), these sensors provide versatile output options, including a mix of digital PNP and analogue voltage output. The teach-in adjustment feature allows for two levels of sensitivity adjustment, while the blanking function enhances operational flexibility. Constructed with a robust aluminium housing and PMMA active head material, the sensors are designed to withstand harsh environments, offering an IP67 degree of protection. They operate efficiently within a temperature range of -10°C to +55°C and are equipped with short-circuit and reverse polarity protection for enhanced safety. The sensors are compatible with IEC EN 60947-5-2 standards for interference to external light, shocks, and vibrations, and come with CE and cULus approvals. Supplied with an ST151 fixing kit, these sensors are easy to install and integrate into existing systems. With a compact design measuring 649x36x20mm and weighing 1500g, the Datasensing CX2E0RA/10-064V Sensors are an ideal choice for applications requiring precise area sensing capabilities.
