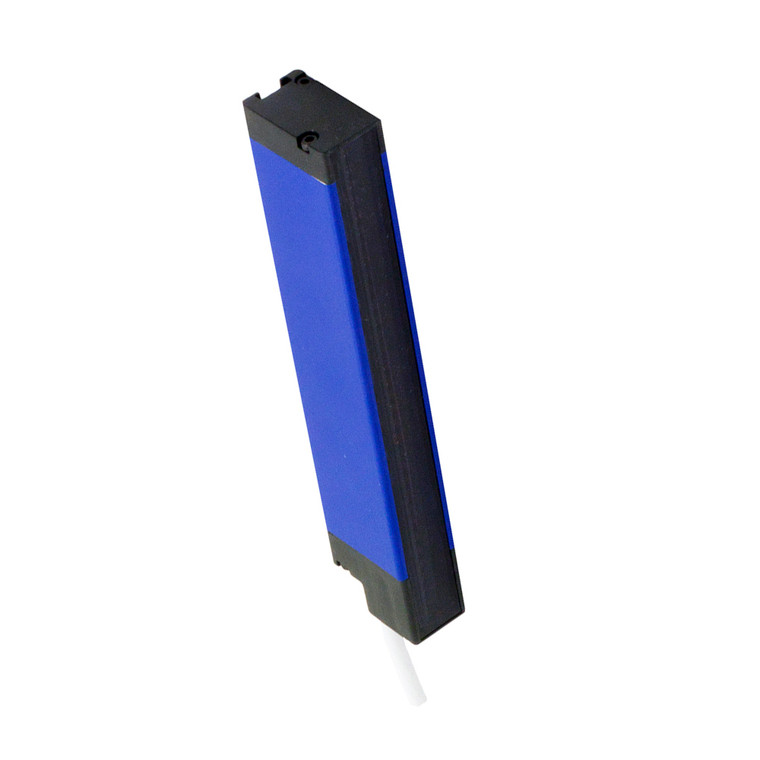

Datasensing CX2E0RA/10-080V Sensors

The Datasensing CX2E0RA/10-080V Sensors are advanced area sensors designed for precision and reliability in various industrial applications. Featuring a one-cable synchronization system, these sensors offer a pitch of 10mm and a controlled height of 800mm, with a nominal sensing distance ranging from 0.3 to 6 meters. The sensors utilize parallel beams and floating crossbeams with variable amplitude, ensuring accurate detection with a minimum detectable object size of 10mm. Equipped with digital outputs (NPN and PNP) and analogue outputs (current 420mA and voltage 0..10V), these sensors provide versatile output options, including a mix of digital PNP and analogue voltage output. The teach-in adjustment feature allows for two levels of sensitivity adjustment, while the blanking function enhances operational flexibility. Constructed with a robust aluminium housing and PMMA active head material, the sensors are designed to withstand harsh environments, offering an IP67 degree of protection. They are equipped with LED indicators for easy status monitoring and include short-circuit and reverse polarity protection for enhanced safety. The sensors operate within a voltage range of 16.8 to 30Vdc, with a no-load supply current of ?330mA and a load current of <100mA. They are capable of handling a maximum ripple content of <1.2Vpp and feature a time delay before availability of less than 3 seconds. With approvals from CE and cULus, and compliance with IEC 60947-5-2 standards for EMC compatibility, shocks, and vibrations, the Datasensing CX2E0RA/10-080V Sensors are a reliable choice for demanding industrial environments. Supplied with an ST151 fixing kit, these sensors are ready for seamless integration into your system.
