Datasensing CX2E0RA/20-032V Sensors
Datasensing
$1,151.03
The Datasensing CX2E0RA/20-032V Sensors are advanced area sensors designed for precision and reliability in industrial applications. Featuring a one-cable synchronization system, these sensors offer a pitch of 20mm and a control height of 320mm, with a nominal sensing distance ranging from 0.3 to 6 meters. The sensors utilize parallel beams and floating crossbeams with variable amplitude, ensuring accurate detection of objects as small as Ø 10mm.
Equipped with both digital and analogue outputs, including NPN, PNP, 4
20mA current, and 0..10V voltage outputs, these sensors provide versatile integration options. The teach-in sensitivity adjustment allows for easy setup, with two levels of adjustment available. The blanking function and top beam analogue versions enhance functionality, while the robust aluminium housing ensures durability in harsh environments.
With a maximum operating distance of up to 6 meters and a switching frequency of 59.5Hz, these sensors are ideal for high-speed applications. They are protected against short-circuits, reverse polarity, and impulsive overvoltage, and are compliant with IEC EN 60947-5-2 standards for interference to external light. The sensors operate within a temperature range of -10°C to +55°C and are rated IP67 for mechanical protection, making them suitable for a wide range of industrial settings. Supplied with an ST151 fixing kit, the Datasensing CX2E0RA/20-032V Sensors are a reliable choice for precise area sensing needs.
- Nominal sensing distance:
- 0,3 6m
- Beams space:
- 20mm
- controlled height:
- 320mm
- minimum detectable object:
- Ø 10mm
- number of rays:
- 17
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- 0,,,10V + 4,,,20mA
- Output Function:
- positive/negative slope
- Switching frequency:
- 59,5Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- < 3s
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- IEC EN 60947-5-2
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 20mm x 329mm x 35mm
- Weight:
- 750g
- Housing Material:
- Aluminium

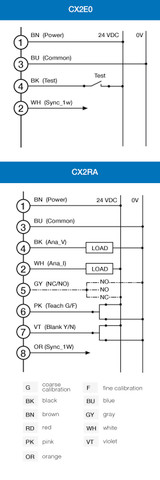

- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 329x36x20
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
