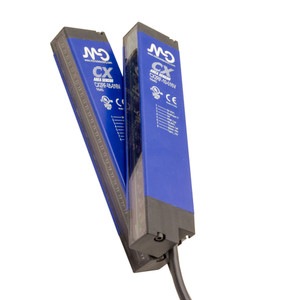

Datasensing CX2E0RA/20-064V Sensors

The Datasensing CX2E0RA/20-064V Sensors are designed for precision and reliability in industrial applications. These area sensors feature a one-cable synchronization system with a pitch of 20mm and a controlled height of 640mm, making them ideal for detecting objects with a minimum diameter of 20mm. With a nominal sensing distance ranging from 0.3 to 6 meters, these sensors utilize parallel beams and floating crossbeams with variable amplitude for enhanced detection capabilities. Equipped with both digital and analogue outputs, including NPN, PNP, and a mix of digital PNP and analogue voltage output (0..10V), these sensors offer versatile integration options. The teach-in sensitivity adjustment allows for easy setup, while the blanking function and two levels of adjustment provide flexibility in various environments. The sensors operate on a voltage range of 16.8 to 30Vdc, with a maximum operating distance of up to 6 meters for pitches of 10mm and 20mm. Built with durability in mind, the sensors feature an aluminium housing and PMMA active head material, ensuring robust performance in temperatures ranging from -10°C to +55°C. They are protected against short-circuits, reverse polarity, and impulsive overvoltage, and are compliant with IEC EN 60947-5-2 standards for interference to external light and EMC compatibility. The sensors are also CE and cULus approved, with an IP67 degree of protection, making them suitable for harsh industrial environments. Supplied with an ST151 fixing kit, these sensors are ready for seamless installation and operation.
