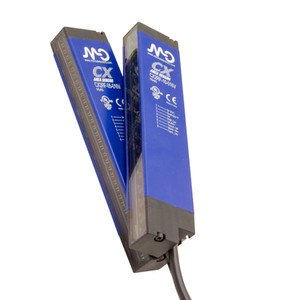

Datasensing CX2E0RA/20-096V Sensors

The Datasensing CX2E0RA/20-096V Sensors are advanced area sensors designed for precise detection and measurement applications. Featuring a one-cable synchronization system, these sensors offer a pitch of 20mm and a controlled height of 960mm, with a nominal sensing distance ranging from 0.3 to 6 meters. The sensors utilize parallel beams and floating crossbeams with variable amplitude, ensuring reliable performance even in challenging environments. Equipped with digital outputs (NPN and PNP) and analogue outputs (current: 4…20mA, voltage: 0…10V), these sensors provide versatile output options to suit various application needs. The teach-in adjustment feature allows for easy sensitivity calibration, with two levels of adjustment available. The blanking function and available analogue versions with top beam enhance the sensor's adaptability. Constructed with a robust aluminium housing and PMMA active head material, the sensors are built to withstand harsh conditions, offering an IP67 degree of protection. They are equipped with LED indicators for easy status monitoring and include short-circuit and reverse polarity protection for added safety. The sensors are compatible with IEC 60947-5-2 standards for interference to external light, shocks, and vibrations. With a compact design measuring 969x36x20mm and weighing 2700g, the Datasensing CX2E0RA/20-096V Sensors are easy to install using the supplied ST151 fixing kit. They operate efficiently within a temperature range of -10°C to +55°C and are approved by CE and cULus, ensuring compliance with international safety standards.
