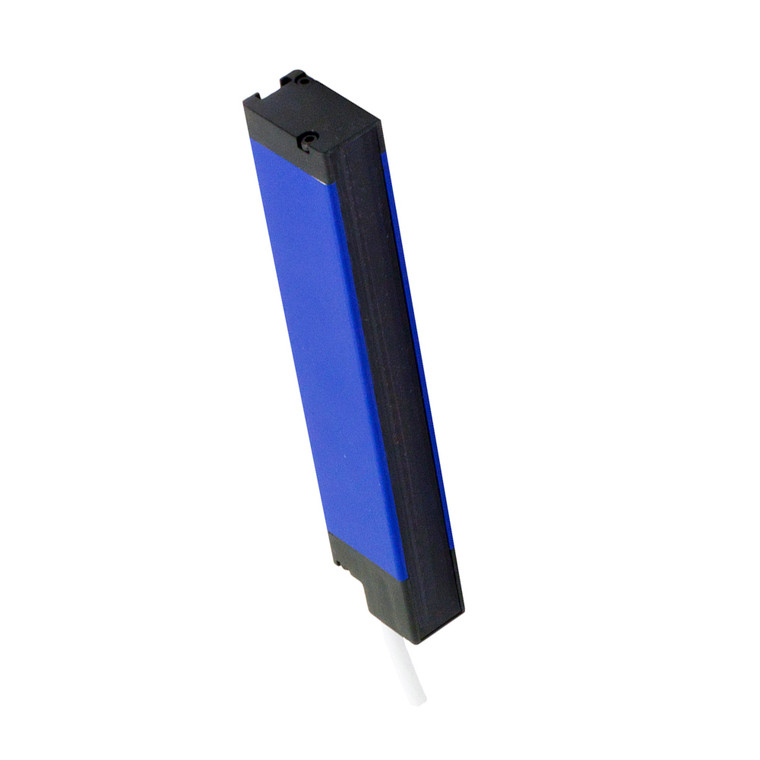

Datasensing CX2E0RB/10-016V Sensors

The Datasensing CX2E0RB/10-016V Sensors are advanced area sensors designed for precision and reliability in various industrial applications. Featuring a one-cable synchronization system, these sensors offer a nominal sensing distance ranging from 0.3 to 6 meters, with a beam spacing of 10mm and a controlled height of 160mm. They are capable of detecting objects as small as Ø 5mm, utilizing 17 rays for accurate detection. Equipped with both NPN and PNP output types, these sensors provide NO/NC output functions and a switching frequency of 59.5Hz. Operating within a voltage range of 16.8 to 30Vdc, they ensure efficient performance with a no-load supply current of ?330mA and a load current of <100mA. The sensors are designed with robust protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety in demanding environments. Constructed with an aluminium housing and PMMA active head material, the sensors are built to withstand harsh conditions, with an operating temperature range of -10°C to +55°C and a storage temperature range of -25°C to +60°C. They are IP67 rated for mechanical protection, making them resistant to dust and water ingress. The sensors come with LED indicators for easy status monitoring and are compatible with M12 4-pin and 8-pin connections. They are supplied with an ST151 fixing kit for convenient installation. With approvals from CE and cULus, and compliance with EMC and shock/vibration standards, the Datasensing CX2E0RB/10-016V Sensors are a reliable choice for enhancing automation and safety in industrial settings.
