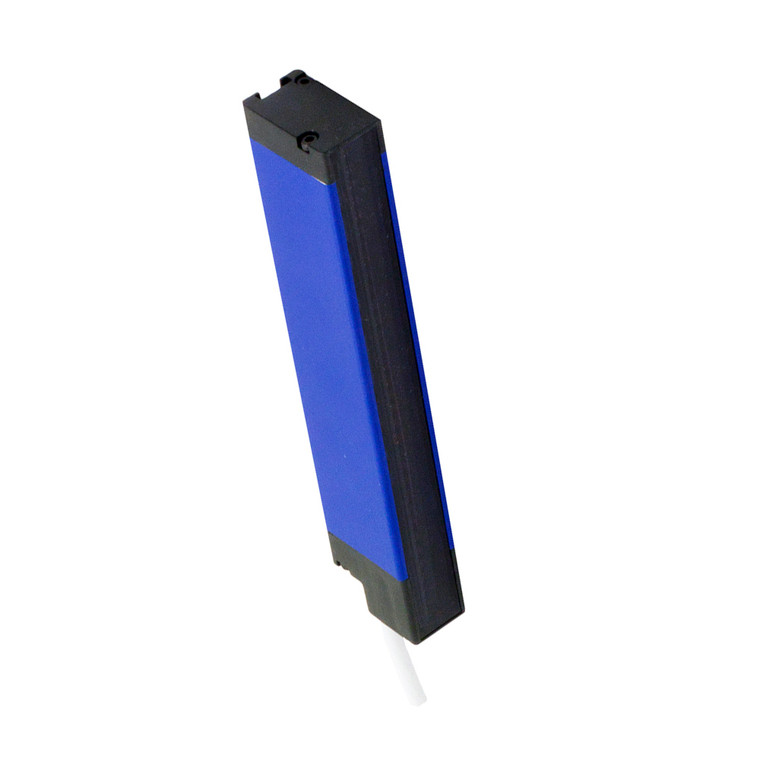

Datasensing CX2E0RB/10-048V Sensors
Datasensing
$1,256.83
The Datasensing CX2E0RB/10-048V Sensors are designed for precise area monitoring with a robust aluminum housing and advanced features. This sensor kit includes 49 parallel beams with a 10mm pitch, providing a controlled height of 480mm and a nominal sensing distance ranging from 0.3 to 6 meters. The system operates efficiently with a voltage range of 16.8 to 30Vdc and offers both NPN and PNP output types with NO/NC functions.
Equipped with a teach-in sensitivity adjustment, the sensors ensure accurate detection of objects as small as Ø 10mm. The device supports synchronization by cable and features a blanking function for enhanced flexibility. It offers digital outputs and analogue current and voltage outputs, making it versatile for various applications.
The sensor is protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring reliable performance in demanding environments. It is compliant with IEC EN 60947-5-2 standards for interference to external light and EMC compatibility. The device is rated IP67 for mechanical protection, making it suitable for harsh conditions.
LED indicators provide clear status updates, and the sensor is supplied with an ST151 fixing kit for easy installation. With a compact design measuring 489x36x20mm and a weight of 1200g, the CX2E0RB/10-048V Sensors are an ideal choice for industrial applications requiring high precision and reliability.
- Nominal sensing distance:
- 0,3 6m
- Beams space:
- 10mm
- controlled height:
- 480mm
- minimum detectable object:
- Ø 10mm
- number of rays:
- 49
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- NPN + PNP
- Output Function:
- NO/NC
- Switching frequency:
- 23,5Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- < 3s
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- IEC EN 60947-5-2
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 20mm x 489mm x 35mm
- Weight:
- 1200g
- Housing Material:
- Aluminium
- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 489x36x20
- Mechanical Protection:
- IP67
