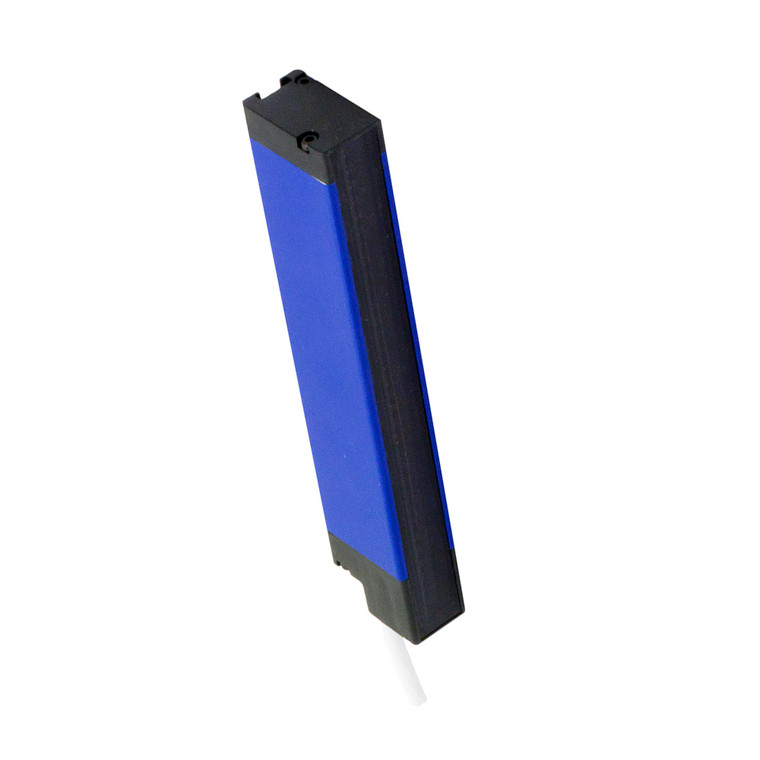

Datasensing CX2E0RB/10-096V Sensors

The Datasensing CX2E0RB/10-096V Sensors are advanced area sensors designed for precise detection and measurement applications. Featuring a one-cable synchronization system, these sensors offer a pitch of 10mm and a controlled height of 960mm, with a nominal sensing distance ranging from 0.3 to 6 meters. The sensors utilize parallel beams and floating crossbeams with variable amplitude, ensuring reliable performance even in challenging environments. Equipped with both NPN and PNP digital outputs, as well as analogue current and voltage outputs, these sensors provide versatile connectivity options. The teach-in adjustment feature allows for easy sensitivity calibration, while the blanking function enhances detection accuracy. The sensors are capable of detecting objects with a minimum diameter of 10mm and operate at a switching frequency of 12.3Hz. Constructed with a durable aluminium housing and PMMA active head material, the sensors are built to withstand harsh conditions, with an IP67 degree of protection. They are equipped with LED indicators for easy status monitoring and offer short-circuit and reverse polarity protection for enhanced safety. The sensors are compatible with IEC 60947-5-2 standards for interference to external light and impulsive overvoltage protection. With a compact design measuring 969x36x20mm and weighing 2700g, the Datasensing CX2E0RB/10-096V Sensors are easy to install using the included ST151 fixing kit. They operate efficiently within a temperature range of -10°C to +55°C and are approved by CE and cULus, ensuring compliance with international safety standards.
