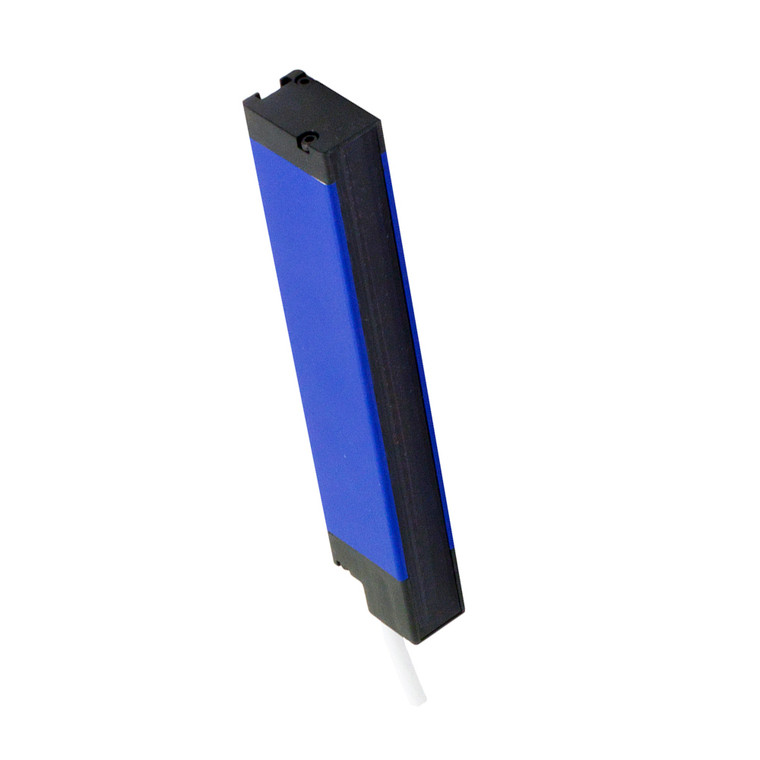

Datasensing CX2E0RB/20-048V Sensors
Datasensing
$1,173.59
The Datasensing CX2E0RB/20-048V Sensors are advanced area sensors designed for precision and reliability in various industrial applications. Featuring a one-cable synchronization system, these sensors offer a pitch of 20mm and a control height of 480mm, with a nominal sensing distance ranging from 0.3 to 6 meters. The sensors utilize parallel beams and floating crossbeams with variable amplitude, ensuring accurate detection even in challenging environments.
Equipped with both NPN and PNP digital outputs, as well as analogue current and voltage outputs, these sensors provide versatile connectivity options. The teach-in adjustment feature allows for easy sensitivity calibration, while the blanking function enhances operational flexibility. The sensors are capable of detecting objects with a minimum diameter of 20mm, supported by 25 rays for comprehensive coverage.
Constructed with a durable aluminium housing and PMMA active head material, the sensors are built to withstand harsh conditions, with an operating temperature range of -10°C to +55°C and a degree of protection rated at IP67. The sensors are equipped with LED indicators for easy status monitoring and include short-circuit and reverse polarity protection for enhanced safety.
With approvals from CE and cULus, and compliance with IEC 60947-5-2 standards for EMC compatibility, shocks, and vibrations, the Datasensing CX2E0RB/20-048V Sensors are a reliable choice for ensuring precise area monitoring in industrial settings. The package includes an ST151 fixing kit for convenient installation.
- Nominal sensing distance:
- 0,3 6m
- Beams space:
- 20mm
- controlled height:
- 480mm
- minimum detectable object:
- Ø 20mm
- number of rays:
- 25
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- NPN + PNP
- Output Function:
- NO/NC
- Switching frequency:
- 23,5Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- < 3s
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- IEC EN 60947-5-2
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 20mm x 489mm x 35mm
- Weight:
- 1200g
- Housing Material:
- Aluminium
- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 489x36x20
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
