Datasensing CX2E0RF/05-048V Sensors

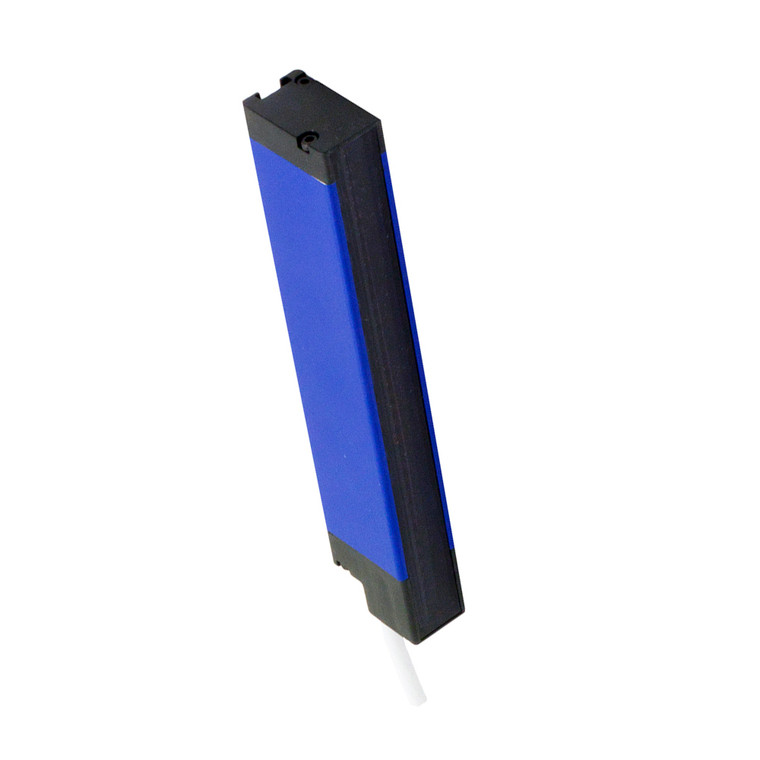

The Datasensing CX2E0RF/05-048V Sensors are advanced area sensors designed for precision and reliability in various industrial applications. Featuring a one-cable synchronization system, these sensors offer a pitch of 5mm and a control height of 480mm, with a nominal sensing distance ranging from 0.3 to 3 meters. The sensors utilize parallel beams and floating crossbeams with variable amplitude, ensuring accurate detection of objects as small as Ø 5mm. Equipped with both digital (NPN and PNP) and analogue outputs (current 4…20mA and voltage 0..10V), the CX2E0RF/05-048V Sensors provide versatile output options, including a mix of digital PNP and analogue voltage output. The sensors feature a teach-in adjustment system with two levels of sensitivity adjustment, allowing for easy customization to suit specific needs. The robust design includes a blanking function and is protected against short-circuits, reverse polarity, and impulsive overvoltage. With an IP67 degree of protection, these sensors are built to withstand harsh environments, operating effectively within temperatures of -10°C to +55°C. The housing is made of durable aluminum, and the active head is constructed from PMMA, ensuring longevity and resistance to external factors. Additional features include LED indicators for easy status monitoring, a quick time delay before availability of less than 3 seconds, and compliance with IEC EN 60947-5-2 standards for interference to external light, shocks, and vibrations. The sensors come with a ST151 fixing kit for convenient installation and are approved by CE and cULus, ensuring high standards of safety and performance.
