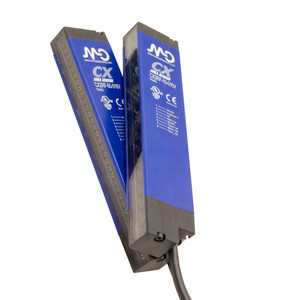

The Datasensing CX2E0RF/10-032VTB Sensors are advanced area sensors designed for precision and reliability. Featuring a one-cable synchronization system, these sensors boast a nominal sensing distance ranging from 0.3 to 6 meters, with a beam spacing of 10mm and a controlled height of 320mm. They are capable of detecting objects as small as Ø 5mm, utilizing 33 parallel beams for comprehensive coverage. The sensors operate on a 16.8 to 30Vdc power supply, with a PNP + 0...10V output type and NO/NC output function, offering both positive and negative slope options.
With a switching frequency of 33.7Hz, these sensors ensure rapid response times, while the teach-in by wire sensitivity adjustment allows for easy customization. The robust aluminium housing provides IP67 mechanical protection, making it suitable for challenging environments. The sensors are equipped with LED indicators in blue, red, and yellow for the emitter, and green, red, and yellow for the receiver, ensuring clear status visibility.
Additional features include short-circuit and reverse polarity protection, impulsive overvoltage protection, and compliance with IEC EN 60947-5-2 standards for interference to external light, shocks, and vibrations. The sensors come with an ST151 fixing kit for easy installation and are approved by CE and cULus. With a weight of 750g and dimensions of 329x36x20mm, these sensors are compact yet powerful, making them an ideal choice for various industrial applications.
- Nominal sensing distance:
- 0,3 6m
- Beams space:
- 10mm
- controlled height:
- 320mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 33
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- PNP + 0...10V
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 33,7Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- < 3s
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- IEC EN 60947-5-2
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 750g
- Housing Material:
- Aluminium
- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 329x36x20
- Operating Temperature:
- -10°C + 55° C (without freeze)
- Mechanical Protection:
- IP67
