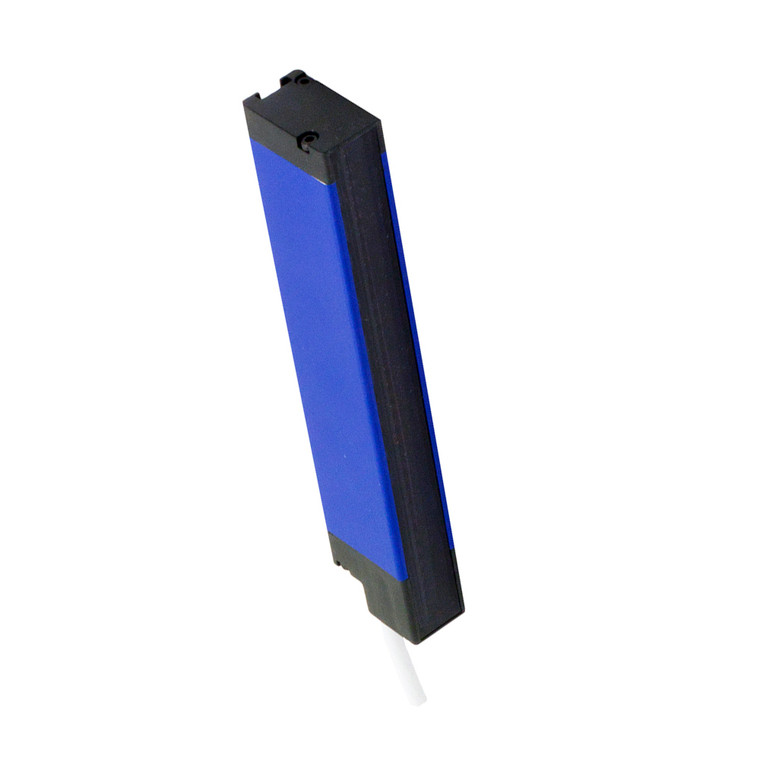

Datasensing CX2E0RF/10-064V Sensors
Datasensing
$1,602.55
The Datasensing CX2E0RF/10-064V Sensors are designed for precision and reliability in industrial applications. Featuring a nominal sensing distance of 0.3 to 6 meters, these area sensors utilize parallel beams and floating crossbeams with variable amplitude for optimal performance. With a controlled height of 640mm and a beam spacing of 10mm, they can detect objects as small as Ø 10mm. The sensors offer synchronization by cable and support pitches of 5, 10, and 20mm, allowing for a maximum operating distance of up to 6 meters.
Equipped with digital outputs (NPN and PNP) and analogue outputs (current 4
20mA and voltage 0..10V), these sensors provide versatile output options, including a mix of digital PNP and analogue voltage output. The teach-in adjustment feature offers two levels of sensitivity adjustment, while the blanking function enhances operational flexibility. The sensors are housed in durable aluminum with an IP67 protection rating, ensuring resilience in harsh environments.
Additional features include short-circuit and reverse polarity protection, impulsive overvoltage protection, and compliance with IEC EN 60947-5-2 standards for interference to external light. The sensors are equipped with LED indicators for easy status monitoring and come with a ST151 fixing kit for convenient installation. Operating within a temperature range of -10°C to +55°C, these sensors are CE and cULus approved, making them a reliable choice for various industrial applications.
- Nominal sensing distance:
- 0,3 6m
- Beams space:
- 10mm
- controlled height:
- 640mm
- minimum detectable object:
- Ø 10mm
- number of rays:
- 65
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- PNP + 0...10V
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 18,1Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- < 3s
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- IEC EN 60947-5-2
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 20mm x 649mm x 35mm
- Weight:
- 1500g
- Housing Material:
- Aluminium
- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 649x36x20
- Mechanical Protection:
- IP67
