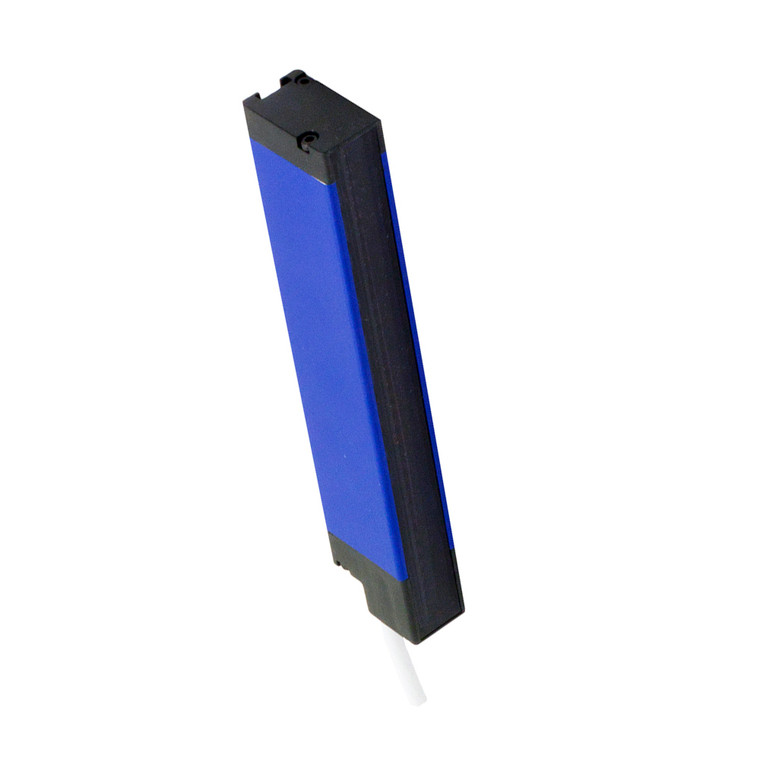

Datasensing CX2E0RF/20-016V Sensors
Datasensing
$818.59
The Datasensing CX2E0RF/20-016V Sensors are advanced area sensors designed for precision and reliability in various industrial applications. Featuring a one-cable synchronization system, these sensors offer a pitch of 20mm and a controlled height of 160mm, with a nominal sensing distance ranging from 0.3 to 6 meters. The sensors utilize parallel beams and floating crossbeams with variable amplitude, ensuring accurate detection of objects as small as Ø 10mm.
Equipped with both digital (NPN and PNP) and analogue outputs (current: 4
20mA, voltage: 0..10V), the CX2E0RF/20-016V Sensors provide versatile output options, including a mix of digital PNP and analogue voltage output. The sensors feature a teach-in adjustment system with two levels of sensitivity adjustment, allowing for precise customization to suit specific needs.
The robust aluminium housing, combined with PMMA active head material, ensures durability and protection against harsh environments, with an IP67 degree of protection. The sensors are equipped with LED indicators for easy status monitoring and offer short-circuit and reverse polarity protection for enhanced safety.
With a compact design measuring 169mm x 36mm x 20mm and weighing 450g, these sensors are easy to install using the included ST151 fixing kit. They operate efficiently within a temperature range of -10°C to +55°C and are compliant with CE and cULus approvals, as well as EMC compatibility standards. Ideal for applications requiring high precision and reliability, the Datasensing CX2E0RF/20-016V Sensors are a top choice for industrial automation and safety systems.
- Nominal sensing distance:
- 0,3 6m
- Beams space:
- 20mm
- controlled height:
- 160mm
- minimum detectable object:
- Ø 10mm
- number of rays:
- 9
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- PNP + 0...10V
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 96,1Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- < 3s
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- IEC EN 60947-5-2
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 20mm x 169mm x 35mm
- Weight:
- 450g
- Housing Material:
- Aluminium
- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 169x36x20
- Mechanical Protection:
- IP67
