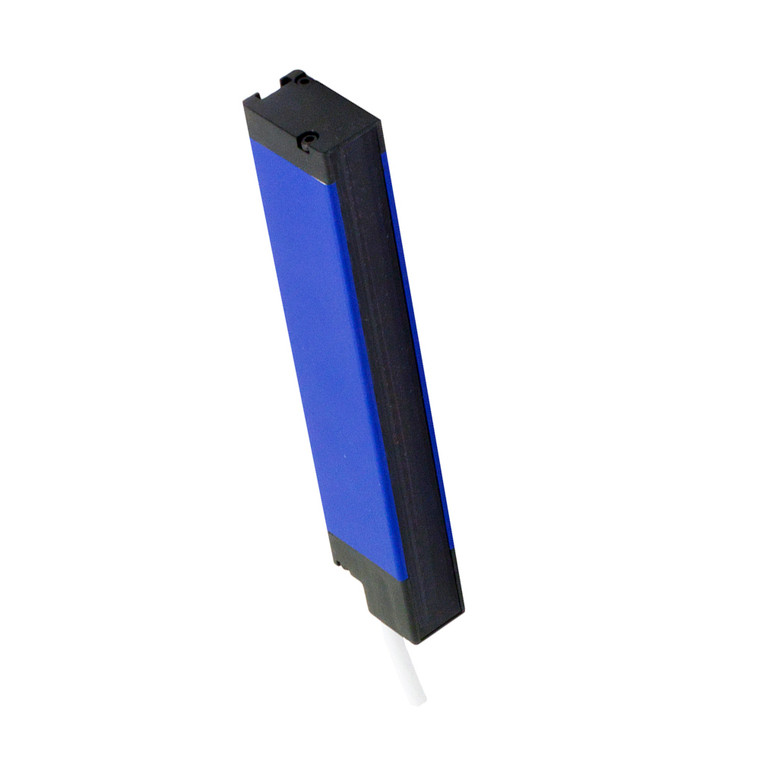

Datasensing CX2E0RF/20-032V Sensors
Datasensing
$1,057.86
The Datasensing CX2E0RF/20-032V Sensors are advanced area sensors designed for precision and reliability in industrial applications. Featuring a one-cable synchronization system, these sensors offer a pitch of 20mm and a controlled height of 320mm, with a nominal sensing distance ranging from 0.3 to 6 meters. The sensors utilize parallel beams and floating crossbeams with variable amplitude, ensuring accurate detection of objects as small as Ø 10mm.
Equipped with both digital and analogue outputs, including NPN, PNP, and a 0...10V analogue voltage output, these sensors provide versatile integration options. The teach-in sensitivity adjustment allows for easy setup, while the blanking function and two levels of adjustment enhance operational flexibility. The sensors are protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring durability and safety in demanding environments.
Constructed with a robust aluminium housing and PMMA active head material, the sensors are designed to withstand harsh conditions, with an IP67 degree of protection and an operating temperature range of -10°C to +55°C. The sensors are compliant with CE and cULus standards, and come with a ST151 fixing kit for easy installation. With a sleek design measuring 329x36x20mm and weighing 750g, the Datasensing CX2E0RF/20-032V Sensors are an ideal choice for applications requiring precise area monitoring and object detection.
- Nominal sensing distance:
- 0,3 6m
- Beams space:
- 20mm
- controlled height:
- 320mm
- minimum detectable object:
- Ø 10mm
- number of rays:
- 17
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- PNP + 0...10V
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 59,5Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- < 3s
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- IEC EN 60947-5-2
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 20mm x 329mm x 35mm
- Weight:
- 750g
- Housing Material:
- Aluminium
- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 329x36x20
- Mechanical Protection:
- IP67
