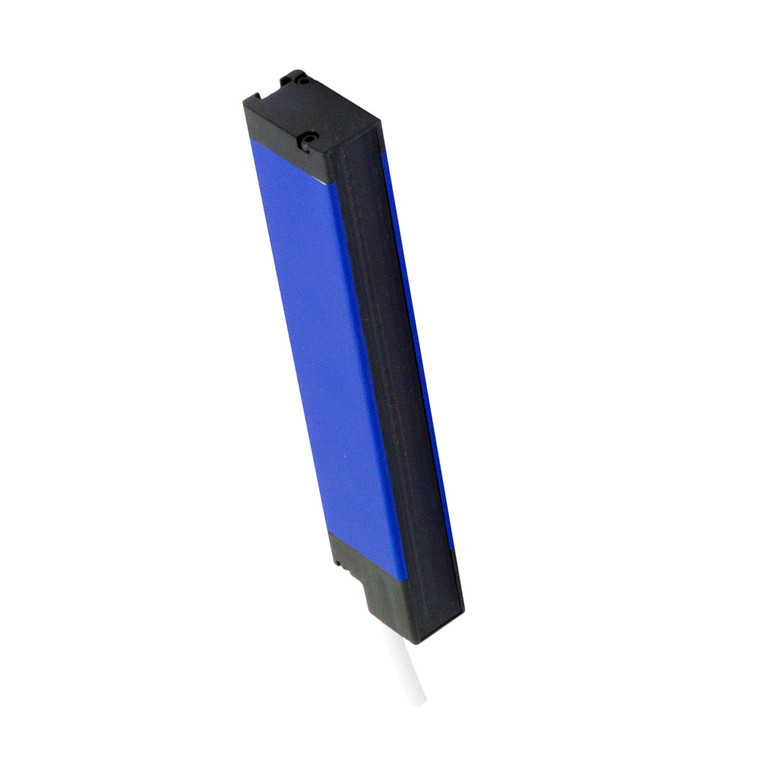

Datasensing CX2E0RF/20-096V Sensors
Datasensing
$1,891.77
The Datasensing CX2E0RF/20-096V Sensors are advanced area sensors designed for precise detection and measurement applications. Featuring a one-cable synchronization system, these sensors offer a pitch of 20mm and a controlled height of 960mm, making them ideal for a variety of industrial environments. With a nominal sensing distance ranging from 0.3 to 6 meters, they are equipped with 49 parallel beams and floating crossbeams, ensuring reliable performance even in challenging conditions.
These sensors provide versatile output options, including digital NPN and PNP outputs, as well as analogue current (4
20mA) and voltage (0
10V) outputs. The teach-in sensitivity adjustment allows for easy setup and customization, while the blanking function enhances operational flexibility. The robust aluminium housing, combined with PMMA active head material, ensures durability and protection against harsh environmental factors, with an IP67 degree of protection.
The CX2E0RF/20-096V Sensors are equipped with LED indicators for easy status monitoring and offer comprehensive protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection. Operating efficiently within a temperature range of -10°C to +55°C, these sensors are CE and cULus approved, ensuring compliance with international standards. Supplied with an ST151 fixing kit, they are ready for seamless integration into your system.
- Nominal sensing distance:
- 0,3 6m
- Beams space:
- 20mm
- controlled height:
- 960mm
- minimum detectable object:
- Ø 20mm
- number of rays:
- 49
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- PNP + 0...10V
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 23,5Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- < 3s
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- IEC EN 60947-5-2
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 20mm x 969mm x 35mm
- Weight:
- 2700g
- Housing Material:
- Aluminium
- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 969x36x20
- Mechanical Protection:
- IP67
