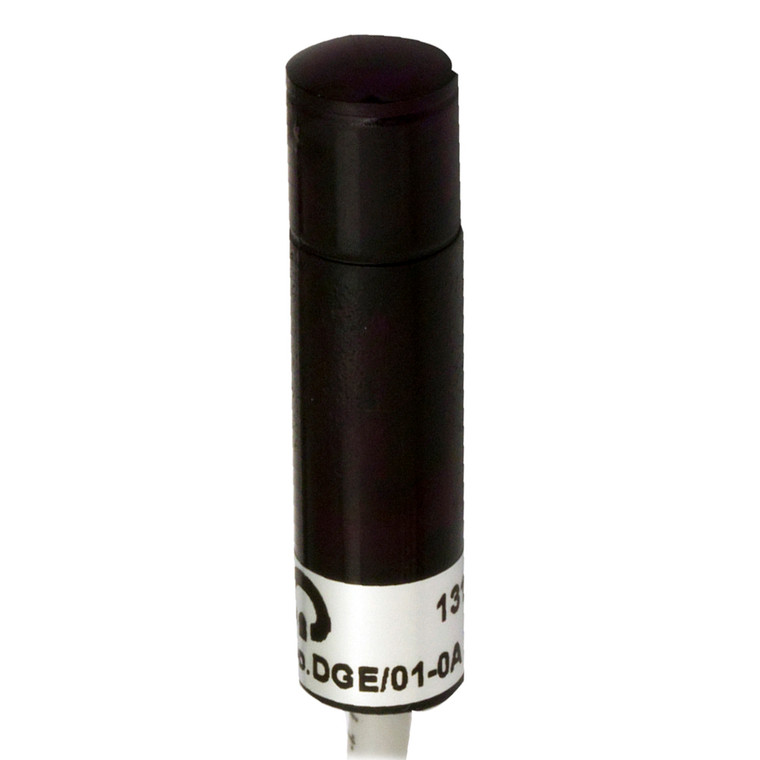

Datasensing DGE/00-1C Sensors
Datasensing
$79.37
The Datasensing DGE/00-1C Sensors are designed for optimal performance in harsh environments, featuring a robust IP68-rated photoelectric sensor system. These sensors are equipped with LED indicators for alignment stability, operating voltage, alarm, and output state, ensuring precise monitoring and control. With a versatile operating voltage that accommodates both AC and DC, the unit offers relay output and relay alarm output for enhanced functionality. The double timer with independent adjustments and sensitivity adjustment allows for tailored operation, while the option for panel mounting adds to its adaptability. The sensors boast a nominal sensing distance of 60 meters in high mode and 30 meters in low mode, with a beam angle of ± 5°. Constructed with an anodized aluminum housing and a glass active head, the sensors are built to withstand temperatures ranging from -20°C to +60°C. The 15-meter PVC cable connection ensures flexibility in installation. Conforming to CE and EMC directives, the DGE/00-1C Sensors are a reliable choice for demanding applications.
- Nominal sensing distance:
- 60m
- Beam angle:
- ± 5°
- Function Principle:
- Emitter
- Optic position:
- Axial
- Operating Voltage:
- from UR control unit
- Emission:
- Infrared
- Interference to external light:
- 20000 lux
- Housing Material:
- Anodized alluminium
- Connections:
- 15m PVC cable
- Active Head Material:
- glass
- Diameter/Dimension:
- Ø 10mm
- Approvals:
- CE
- EMC compatibility:
- Conforming with EMC directive according with EN60947-5-2
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
