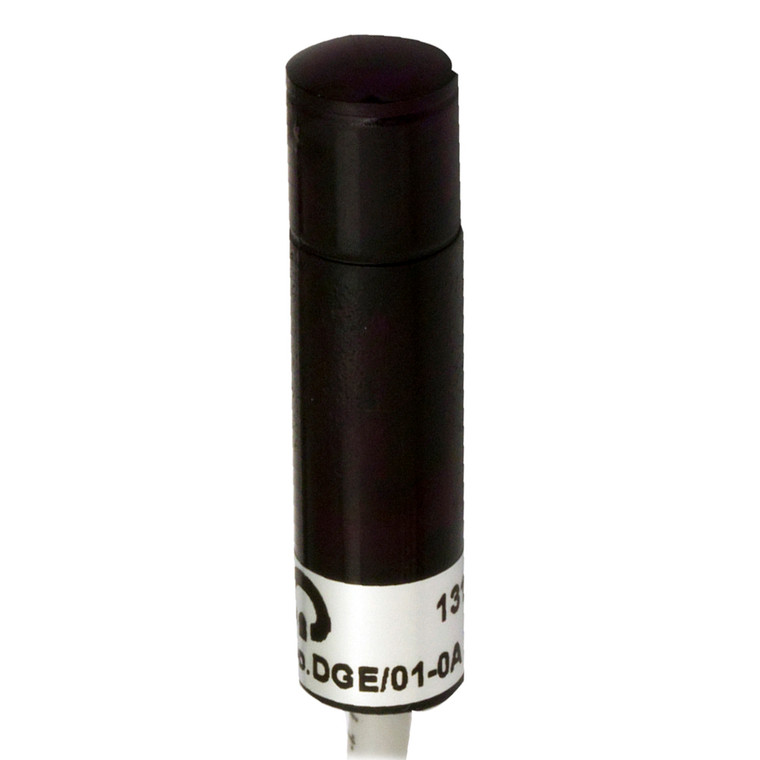

Datasensing DGE/01-0C Sensors
Datasensing
$44.81
The Datasensing DGE/01-0C Sensors are robust photoelectric sensors designed for demanding environments. With a nominal sensing distance of 75 meters and a beam angle of ±5°, these sensors utilize an emitter function principle with axial optic positioning. They operate on both AC and DC voltage, featuring relay output and alarm output for enhanced functionality. The sensors are equipped with LED indicators for alignment, operating voltage, alarm, and output state, ensuring easy monitoring and maintenance.
Constructed with a durable PC/ABS housing and a polycarbonate active head, these sensors are built to withstand harsh conditions, boasting an IP68 degree of protection. They are capable of operating in temperatures ranging from -20°C to +60°C, making them suitable for a wide range of applications. The sensors come with a 15-meter PVC cable for convenient connectivity and can be mounted on panels for versatile installation options.
The DGE/01-0C Sensors also feature a double timer with independent adjustments and sensitivity adjustment, allowing for precise control and customization. They are CE approved and conform to EMC directives according to EN60947-5-2, ensuring compliance with industry standards. With a compact design of Ø 10mm x 41mm, these sensors are ideal for applications requiring reliable performance in challenging environments.
- Nominal sensing distance:
- 75m
- Beam angle:
- ± 5°
- Function Principle:
- Emitter
- Optic position:
- Axial
- Operating Voltage:
- from UR control unit
- Emission:
- Infrared
- Interference to external light:
- 20000 lux
- Housing Material:
- PC / ABS cable exit
- Connections:
- 15m PVC cable
- Active Head Material:
- Polycarbonate
- Diameter/Dimension:
- Ø 10mm
- Approvals:
- CE
- EMC compatibility:
- Conforming with EMC directive according with EN60947-5-2
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
