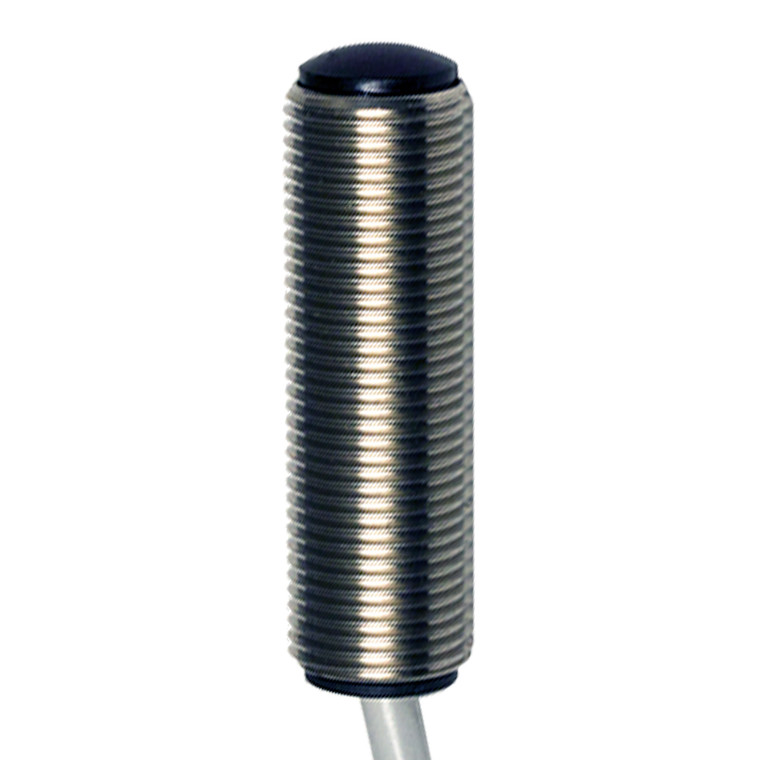

Datasensing DGE/01-2B Sensors
Datasensing
$79.55
The Datasensing DGE/01-2B Sensors are designed for optimal performance in challenging environments, featuring a robust stainless steel AISI 303 housing and a durable polycarbonate active head. These IP68-rated photoelectric sensors are ideal for applications requiring high resistance to harsh conditions. With a nominal sensing distance of 75 meters and a beam angle of ±5°, they provide reliable detection capabilities. The sensors operate on AC or DC voltage and include relay output and alarm functions, with LED indicators for alignment, operating voltage, alarm, and output state. The unit supports panel mounting and offers a double timer with independent adjustments for enhanced flexibility. The sensors are CE approved and conform to EMC directives, ensuring compliance with industry standards. With a compact M12 x 41mm design and a 10m PVC cable connection, these sensors are both versatile and easy to install. Operating efficiently in temperatures ranging from -20°C to +60°C, they are perfect for demanding industrial applications.
- Nominal sensing distance:
- 75m
- Beam angle:
- ± 5°
- Function Principle:
- Emitter
- Optic position:
- Axial
- Operating Voltage:
- from UR control unit
- Emission:
- Infrared
- Interference to external light:
- 20000 lux
- Housing Material:
- Stainless steel AISI 303
- Connections:
- 10m PVC cable
- Active Head Material:
- Polycarbonate
- Diameter/Dimension:
- M12
- Approvals:
- CE
- EMC compatibility:
- Conforming with EMC directive according with EN60947-5-2
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
