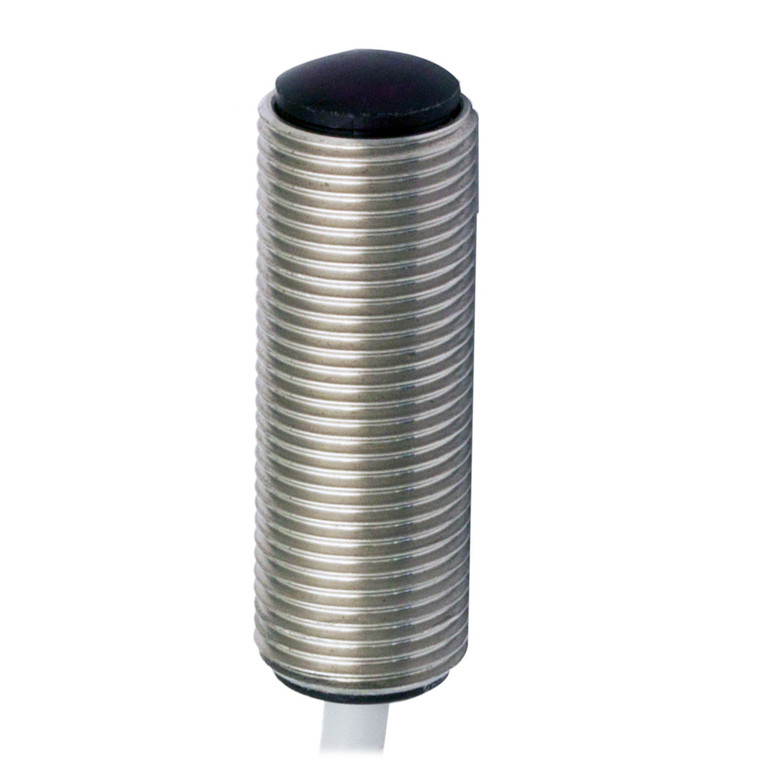

Datasensing DGE/02-0C Sensors
Datasensing
$44.81
The Datasensing DGE/02-0C Sensors are robust photoelectric sensors designed for demanding environments. With a nominal sensing distance of 32 meters and a beam angle of ±10°, these sensors utilize an infrared emission principle with an axial optic position. They feature LED indicators for alignment, operating voltage, alarm, and output state, ensuring precise monitoring and control. The sensors operate on both AC and DC voltage, offering relay output and alarm functionalities. Equipped with a double timer for independent adjustments and sensitivity control, they can be conveniently mounted on panels. Built to withstand harsh conditions, these IP68-rated sensors have a sensing distance of up to 60 meters in high mode and 30 meters in low mode. The housing is made from durable PC/ABS material with a 15-meter PVC cable connection, and the active head is constructed from polycarbonate. They are CE approved and conform to EMC directives, providing reliable performance in temperatures ranging from -20°C to +60°C.
- Nominal sensing distance:
- 32m
- Beam angle:
- ± 10°
- Function Principle:
- Emitter
- Optic position:
- Axial
- Operating Voltage:
- from UR control unit
- Emission:
- Infrared
- Interference to external light:
- 20000 lux
- Housing Material:
- PC / ABS cable exit
- Connections:
- 15m PVC cable
- Active Head Material:
- Polycarbonate
- Diameter/Dimension:
- Ø 10mm
- Approvals:
- CE
- EMC compatibility:
- Conforming with EMC directive according with EN60947-5-2
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
