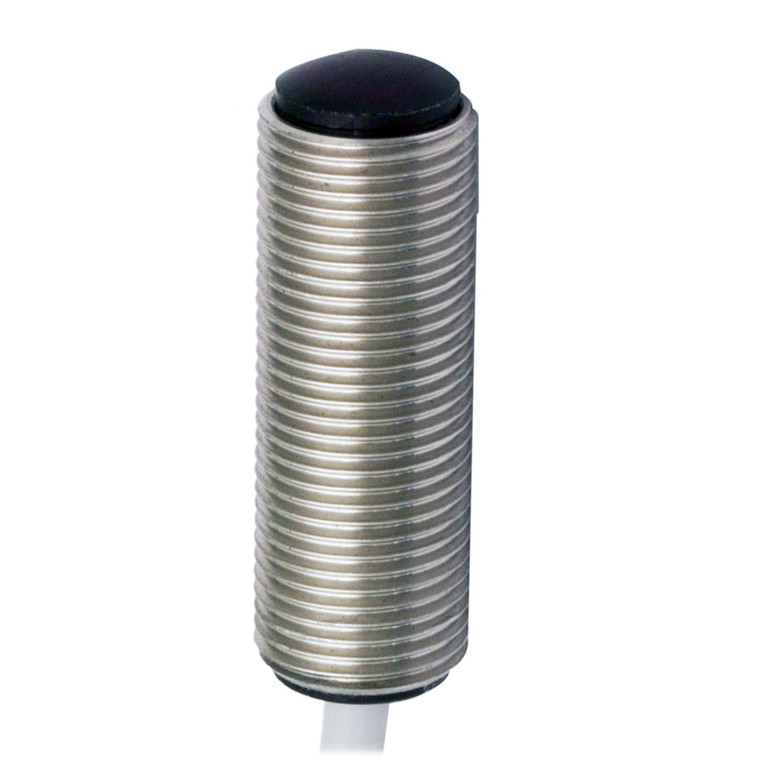

Datasensing DGE/02-2A Sensors
Datasensing
$63.99
The Datasensing DGE/02-2A Sensors are robust photoelectric sensors designed for demanding environments. With a nominal sensing distance of 32 meters and a beam angle of ±10°, these sensors utilize an infrared emission principle with an axial optic position. The unit features LED indicators for alignment stability, operating voltage, alarm, and output state, ensuring precise monitoring and control. It operates on both AC and DC voltage, with relay output and alarm capabilities, and includes a double timer with independent adjustments for enhanced functionality. The sensors are housed in durable stainless steel AISI 303 with a polycarbonate active head, offering IP68 protection for reliable performance in harsh conditions. The compact M12 x 36mm dimensions and 5m PVC cable connections facilitate easy installation, including panel mounting options. With CE approvals and EMC compatibility conforming to EN60947-5-2, these sensors are ideal for applications requiring high resistance to external light interference up to 20,000 lux and operating temperatures ranging from -20°C to +60°C.
- Nominal sensing distance:
- 32m
- Beam angle:
- ± 10°
- Function Principle:
- Emitter
- Optic position:
- Axial
- Operating Voltage:
- from UR control unit
- Emission:
- Infrared
- Interference to external light:
- 20000 lux
- Housing Material:
- Stainless steel AISI 303
- Connections:
- 5m PVC cable
- Active Head Material:
- Polycarbonate
- Diameter/Dimension:
- M12
- Approvals:
- CE
- EMC compatibility:
- Conforming with EMC directive according with EN60947-5-2
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
