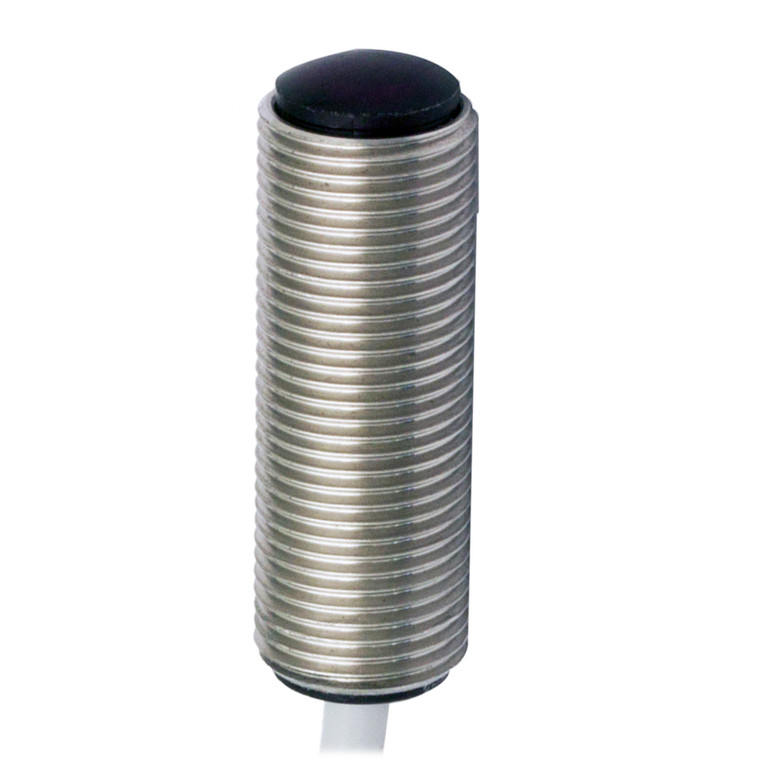

Datasensing DGR/02-0A Sensors
Datasensing
$55.76
The Datasensing DGR/02-0A Sensors are designed for optimal performance in challenging environments, featuring a robust photoelectric sensor receiver with a nominal sensing distance of 32 meters. With a compact design of Ø 10mm x 36mm, these sensors are constructed from durable PC/ABS materials, ensuring reliability and longevity. The unit is equipped with LED indicators for alignment, operating voltage, alarm, and output state, providing clear status updates. It operates on both AC and DC voltage, with relay output and alarm capabilities, and offers a double timer with independent adjustments for enhanced control. The sensor's sensitivity can be finely tuned, and it can be easily mounted on panels, making it versatile for various applications. With an IP68 rating, these sensors are ideal for use in harsh environments, offering a sensing distance of up to 60 meters in high mode and 30 meters in low mode. The DGR/02-0A is CE approved and conforms to EMC directives, ensuring high standards of safety and performance.
- Nominal sensing distance:
- 32m
- Beam angle:
- ± 10°
- Function Principle:
- Receiver
- Optic position:
- Axial
- Operating Voltage:
- from UR control unit
- Emission:
- Infrared
- Interference to external light:
- 20000 lux
- Housing Material:
- PC / ABS cable exit
- Connections:
- 5m PVC cable
- Active Head Material:
- Polycarbonate
- Diameter/Dimension:
- Ø 10mm
- Approvals:
- CE
- EMC compatibility:
- Conforming with EMC directive according with EN60947-5-2
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
