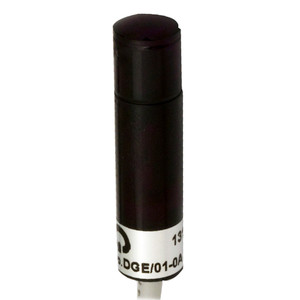

Datasensing DGR/02-0B Sensors
Datasensing
$60.09
The Datasensing DGR/02-0B Sensors are robust photoelectric sensor receivers designed for challenging environments. With a nominal sensing distance of 32 meters and a beam angle of ±10°, these sensors are perfect for precise detection tasks. The unit features a compact design with dimensions of Ø 10mm x 36mm, making it suitable for mounting on panels. Constructed with durable PC/ABS housing and a polycarbonate active head, it ensures long-lasting performance even in harsh conditions.
Equipped with LED indicators, the sensor provides clear status updates on alignment, operating voltage, alarm, and output state. It supports both AC and DC operating voltages and includes relay output and alarm output for versatile applications. The double timer with independent adjustments and sensitivity adjustment allows for customized operation.
The DGR/02-0B is IP68 rated, ensuring protection against dust and water ingress, and is approved with CE certification. It operates efficiently within a temperature range of -20°C to +60°C and offers EMC compatibility conforming to the EN60947-5-2 directive. With a 10-meter PVC cable connection, it provides flexibility in installation. Ideal for use in environments with high interference from external light, up to 20,000 lux, this sensor is a reliable choice for industrial applications.
- Nominal sensing distance:
- 32m
- Beam angle:
- ± 10°
- Function Principle:
- Receiver
- Optic position:
- Axial
- Operating Voltage:
- from UR control unit
- Emission:
- Infrared
- Interference to external light:
- 20000 lux
- Housing Material:
- PC / ABS cable exit
- Connections:
- 10m PVC cable
- Active Head Material:
- Polycarbonate
- Diameter/Dimension:
- Ø 10mm
- Approvals:
- CE
- EMC compatibility:
- Conforming with EMC directive according with EN60947-5-2
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
