Datasensing DGR/02-0C Sensors
Datasensing
$69.49

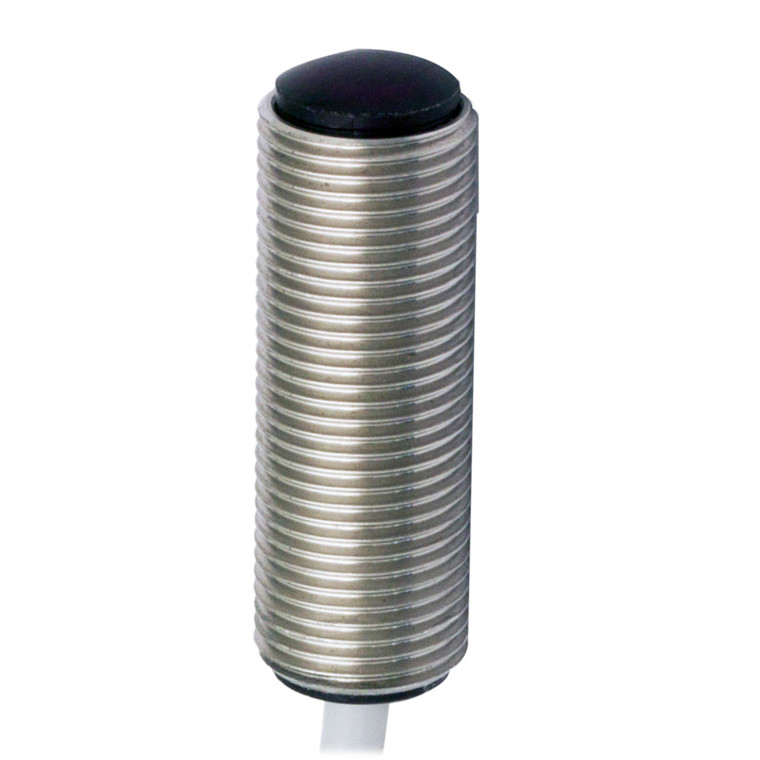

The Datasensing DGR/02-0C Sensors are robust photoelectric sensor receivers designed for challenging environments. With a nominal sensing distance of 32 meters and a beam angle of ±10°, these sensors are perfect for precise detection tasks. The unit features a compact design with dimensions of Ø 10mm x 36mm, making it suitable for mounting on panels. Constructed with durable PC/ABS housing and a polycarbonate active head, it ensures long-lasting performance even in harsh conditions.
Equipped with LED indicators, the DGR/02-0C provides clear status updates on alignment, operating voltage, alarm, and output state. It supports both AC and DC operating voltages and includes relay output and alarm output for versatile applications. The double timer with independent adjustments and sensitivity adjustment allows for customized operation.
The sensor's IP68 rating guarantees protection against dust and water, making it ideal for outdoor and industrial use. It operates efficiently within a temperature range of -20°C to +60°C and is resistant to external light interference up to 20,000 lux. The 15-meter PVC cable connection ensures flexibility in installation. Approved with CE and conforming to EMC directives, the DGR/02-0C is a reliable choice for demanding sensing applications.
- Nominal sensing distance:
- 32m
- Beam angle:
- ± 10°
- Function Principle:
- Receiver
- Optic position:
- Axial
- Operating Voltage:
- from UR control unit
- Emission:
- Infrared
- Interference to external light:
- 20000 lux
- Housing Material:
- PC / ABS cable exit
- Connections:
- 15m PVC cable
- Active Head Material:
- Polycarbonate
- Diameter/Dimension:
- Ø 10mm
- Approvals:
- CE
- EMC compatibility:
- Conforming with EMC directive according with EN60947-5-2
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
