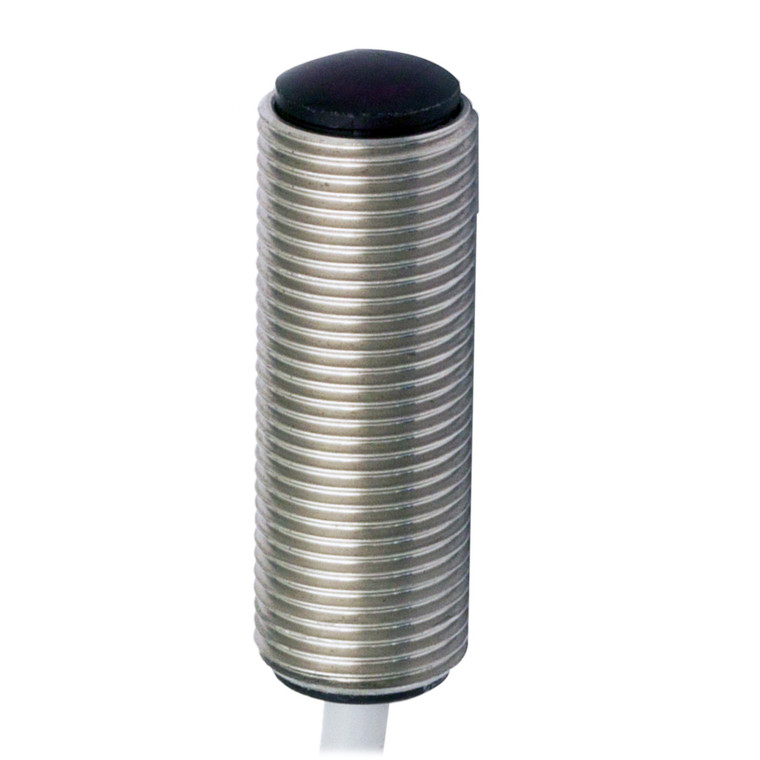

Datasensing DGR/02-2B Sensors
Datasensing
$88.80
The Datasensing DGR/02-2B Sensors are robust photoelectric sensor receivers designed for demanding environments. With a compact size of 32mm and a length of 36mm, these sensors are crafted from durable stainless steel AISI 303 and feature a polycarbonate active head, ensuring resilience in harsh conditions. The sensors boast a nominal sensing distance of 32 meters and a beam angle of ±10°, making them highly effective for precise detection tasks. They operate on both AC and DC voltage, with relay output and alarm capabilities for enhanced functionality. The unit is equipped with LED indicators for alignment, operating voltage, alarm, and output state, providing clear status updates.
These sensors are IP68 rated, offering superior protection against dust and water ingress, and are suitable for applications in extreme environments. The double timer with independent adjustments and sensitivity adjustment features allow for tailored performance. The sensors can be easily mounted on panels, adding to their versatility. With a high interference resistance to external light up to 20,000 lux and EMC compatibility conforming to the EN60947-5-2 directive, these sensors ensure reliable operation. Operating efficiently within a temperature range of -20°C to +60°C, the Datasensing DGR/02-2B Sensors are CE approved, making them a dependable choice for industrial applications.
- Nominal sensing distance:
- 32m
- Beam angle:
- ± 10°
- Function Principle:
- Receiver
- Optic position:
- Axial
- Operating Voltage:
- from UR control unit
- Emission:
- Infrared
- Interference to external light:
- 20000 lux
- Housing Material:
- Stainless steel AISI 303
- Connections:
- 10m PVC cable
- Active Head Material:
- Polycarbonate
- Diameter/Dimension:
- M12
- Approvals:
- CE
- EMC compatibility:
- Conforming with EMC directive according with EN60947-5-2
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
