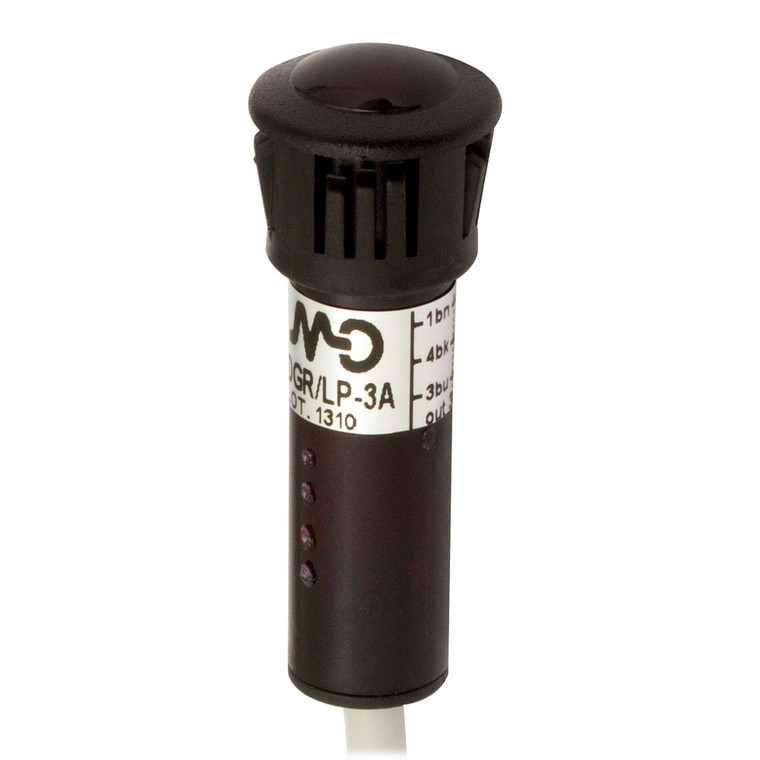

Datasensing DGR/DP-3AEA Sensors
Datasensing
$75.59
The Datasensing DGR/DP-3AEA Sensors are high-performance photoelectric sensor receivers designed for precision and reliability. Encased in a robust Ø 10 mm plastic housing with a length of 41 mm, these sensors are equipped with an irreversible spring latch fixing for secure installation. The LED status indicator provides clear visibility of the output status, ensuring easy monitoring.
Engineered to withstand harsh environments, the sensors boast an IP67 protection degree, offering complete protection against electrical damages. With a nominal sensing distance of 2 meters and a supply voltage range of 10 to 30 VDC, these sensors are versatile for various applications. The PNP Don output type ensures efficient signal processing, while the short-circuit and reverse polarity protection enhance operational safety.
The sensors feature a 5-meter PVC cable for flexible connectivity and are designed to operate within a temperature range of -25°C to +70°C, without freezing. The EMC compatibility with EN 60947-5-3 and approvals from CE guarantee compliance with industry standards. Ideal for environments with high interference from external light, these sensors can handle up to 20,000 lux, making them suitable for diverse industrial settings.
- Nominal sensing distance:
- 2m
- Thermal drift of Sr:
- ?10%Sr
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Notes:
- (EG=4)
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP Don
- Output Function:
- Don
- Switching frequency:
- 40Hz
- Response time:
- 1,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 10mA
- Load current:
- ?30mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=30mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Output status)
- Time delay before availability:
- ? 100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Interference to external light:
- 20.000lux
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 210g
- Housing Material:
- PC housing / POM fixing ring / ABS cable exit
- Connections:
- 5m PVC cable
- Active Head Material:
- PC
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- Ø 10mm
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-3
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
