Datasensing DGR/DP-3DEA Sensors
Datasensing
$77.36

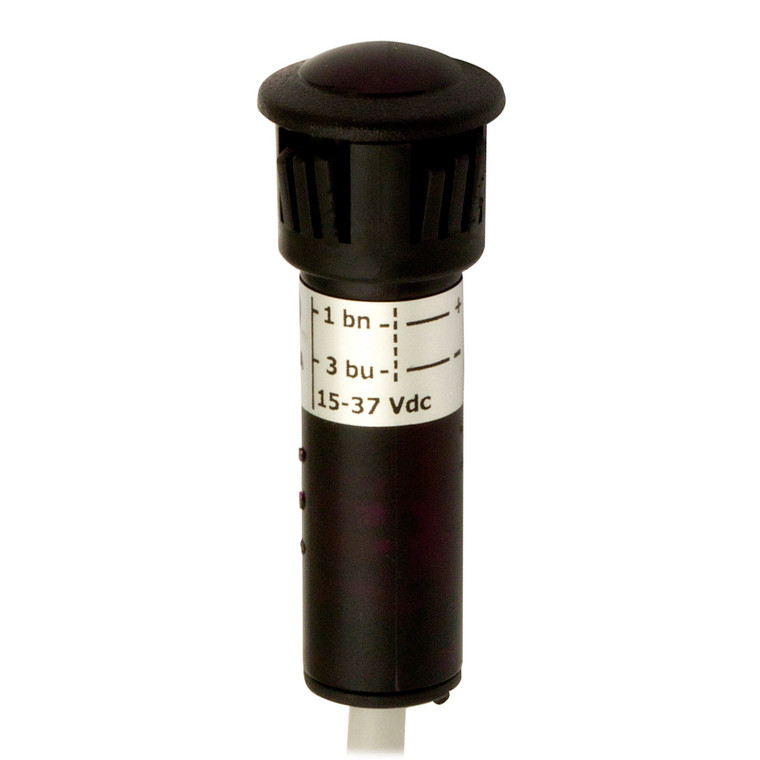

The Datasensing DGR/DP-3DEA Sensors are high-performance photoelectric sensor receivers designed for precision and reliability. Encased in a robust Ø 10 mm plastic housing with a length of 41 mm, these sensors feature an irreversible spring latch fixing with a Ø 13 mm hole for secure installation. Equipped with a yellow LED status indicator, they provide clear output status visibility. Engineered for complete protection against electrical damages, they boast an IP67 protection degree, ensuring durability in harsh environments.
With a nominal sensing distance of 2 meters and a thermal drift of Sr ?10%Sr, these sensors deliver consistent performance. Operating on a supply voltage of 10
30 VDC, they are CE approved and offer a PNP Don output type. The sensors have a switching frequency of 40Hz and a rapid response time of 1.25ms, making them ideal for fast-paced applications. They feature short-circuit and reverse polarity protection, as well as impulsive overvoltage protection, ensuring reliable operation.
The sensors are designed to withstand external light interference up to 20,000 lux and operate efficiently within a temperature range of -25°C to +70°C. With a 7-meter PVC cable connection, they offer flexibility in installation. The housing is made from durable PC material, with a POM fixing ring and ABS cable exit, ensuring longevity and resilience. These sensors are compliant with EMC compatibility standards EN 60947-5-3 and are tested for shocks and vibrations according to IEC standards, making them a robust choice for various industrial applications.
- Nominal sensing distance:
- 2m
- Thermal drift of Sr:
- ?10%Sr
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Notes:
- (EG=4)
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP Don
- Output Function:
- Don
- Switching frequency:
- 40Hz
- Response time:
- 1,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 10mA
- Load current:
- ?30mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=30mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Output status)
- Time delay before availability:
- ? 100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Interference to external light:
- 20.000lux
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 210g
- Housing Material:
- PC housing / POM fixing ring / ABS cable exit
- Connections:
- 7m PVC cable
- Active Head Material:
- PC
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- Ø 10mm
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-3
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
