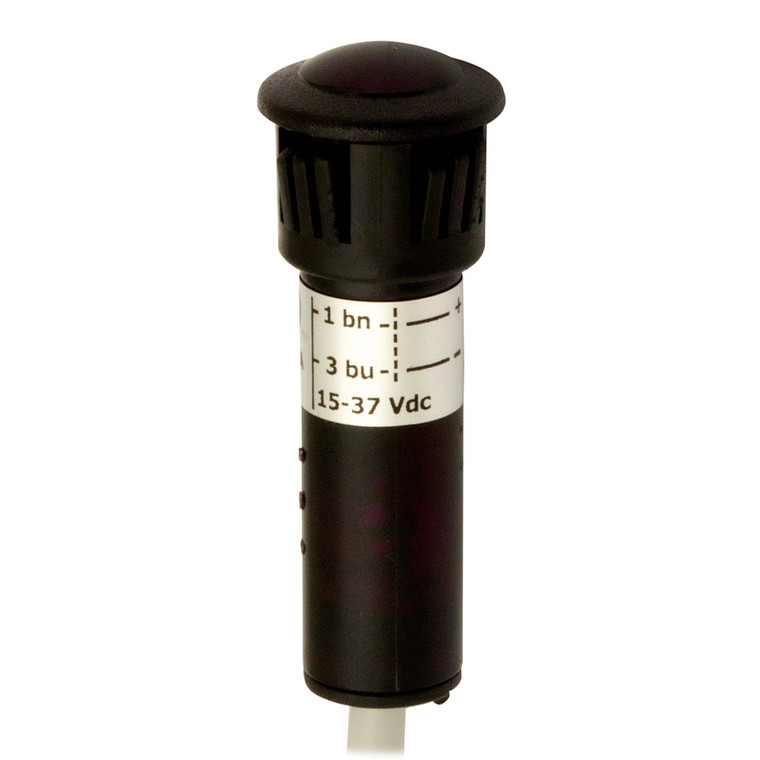

Datasensing DGR/LN-3D Sensors

The Datasensing DGR/LN-3D Sensors are high-performance photoelectric sensor receivers designed for precision and reliability. Encased in a robust Ø 10 mm plastic housing with a length of 41 mm, these sensors feature an irreversible spring latch fixing with a Ø 13 mm hole for secure installation. Equipped with a yellow LED status indicator, the receiver-only design ensures clear output status visibility. Engineered for complete protection against electrical damages, the sensors boast an IP67 protection degree, making them suitable for harsh environments. With a nominal sensing distance of 2 meters and a thermal drift of Sr ?10%Sr, these sensors deliver consistent performance without the need for sensitivity adjustment. Operating on a supply voltage range of 15...37 Vdc (10...30 Vdc for EA version), they are CE approved and offer a switching frequency of 40Hz with a rapid response time of 1.25ms. The NPN Lon output type ensures reliable signal transmission, while the short-circuit and reverse polarity protection enhance operational safety. Designed to withstand external light interference up to 20,000 lux, the sensors are equipped with impulsive overvoltage protection and a time delay before availability of ? 100ms. The durable construction includes a PC housing, POM fixing ring, and ABS cable exit, with a 7-meter PVC cable for flexible connectivity. Operating efficiently in temperatures ranging from -25°C to +70°C, these sensors are built to endure shocks and vibrations as per IEC standards, ensuring long-lasting performance in demanding applications.
