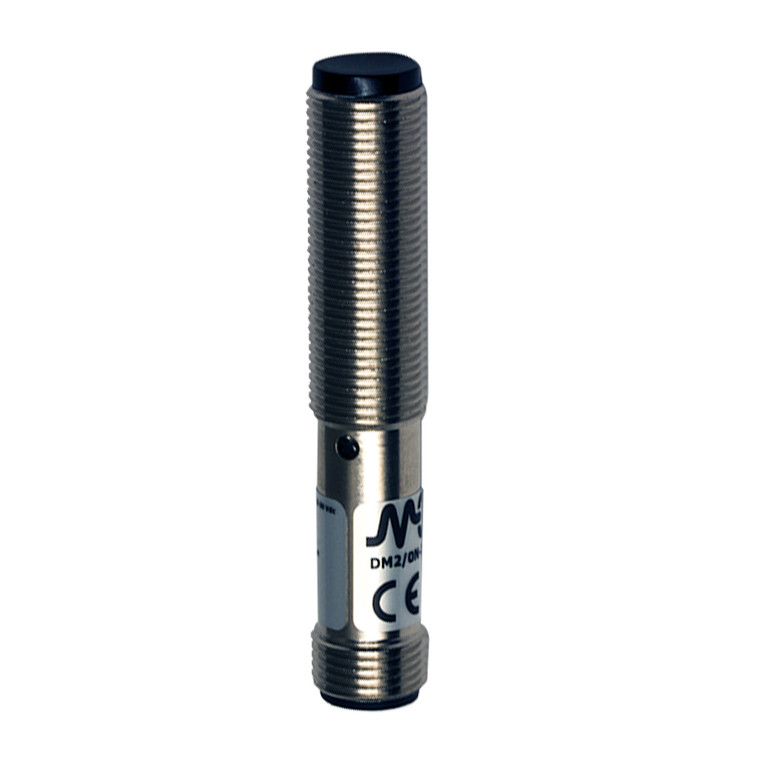

Datasensing DM2/0P-1H Sensors
Datasensing
$88.58
The Datasensing DM2/0P-1H Sensors are designed for precision and reliability in various industrial applications. These sensors feature a diffuse reflection function with a nominal sensing distance of 100mm, making them ideal for short-distance detection tasks. The sensors are equipped with a local and remote teach-in function, allowing for easy setup and configuration. With selectable Light-on/Dark-on outputs, they offer flexibility in operation.
Built to withstand harsh environments, the DM2/0P-1H Sensors boast an IP67 protection degree, ensuring complete protection against dust and water ingress. The multifunction LED status indicator provides clear visual feedback, while the robust nickel-plated brass housing ensures durability. The sensors are also equipped with comprehensive electrical protections, including short-circuit and reverse polarity protection, safeguarding them from potential electrical damages.
Operating within a voltage range of 10 to 30VDC, these sensors maintain a low no-load supply current of ?30mA and a load current of ?100mA. They feature a high switching frequency of 400Hz and a rapid response time of 1.25ms, ensuring quick and accurate detection. The sensors are designed to handle interference from external light sources, with a tolerance of up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight.
The DM2/0P-1H Sensors are CE and cULus listed, meeting international safety and performance standards. They are compatible with M12 connections and come with supplied accessories, including M12 nuts for easy installation. With a compact design and a weight of just 28g, these sensors are a reliable choice for any industrial sensing application.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 400Hz
- Response time:
- 1,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?150ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 28g
- Housing Material:
- Nickel plated brass
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70° C
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M12 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
