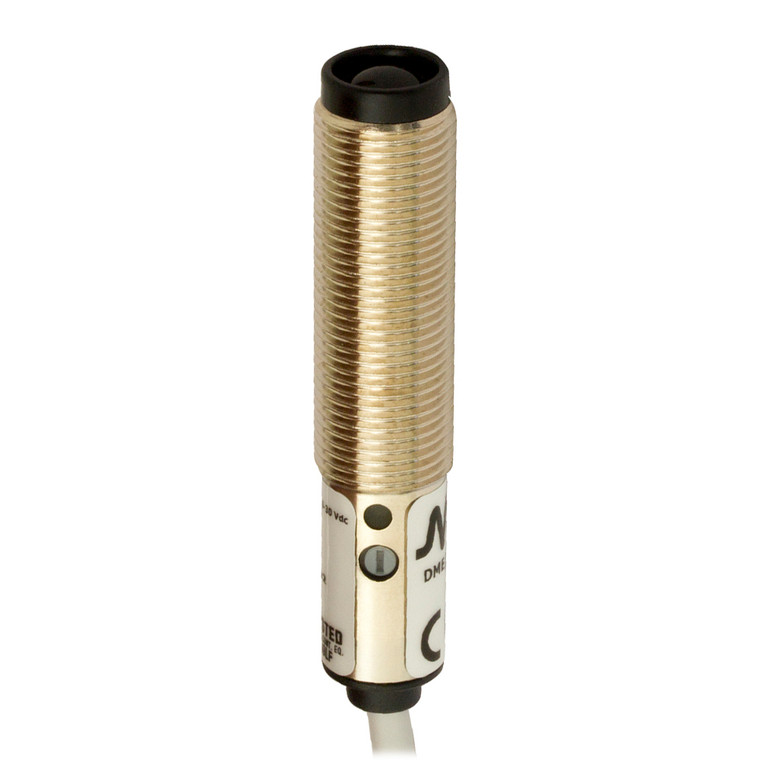

Datasensing DM3/0N-1A Sensors

The Datasensing DM3/0N-1A Sensors are designed for precision and reliability in various industrial applications. Featuring models with diffuse reflection, polarized, and through-beam capabilities, these sensors offer versatile solutions for your sensing needs. The local and remote teach-in function allows for easy sensitivity adjustment, while the selectable Light-on/Dark-on outputs provide flexibility in operation. With an IP67 protection degree, these sensors are built to withstand harsh environments, ensuring durability and longevity. Equipped with a multifunction LED status indicator, the DM3/0N-1A Sensors provide clear visual feedback on operational status. They offer complete protection against electrical damages, including short-circuit and reverse polarity protection, and are approved by CE and cULus standards, ensuring compliance with international safety regulations. The sensors boast a nominal sensing distance of 100mm, with a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%. The function principle is based on diffuse reflection, suitable for short distances up to 200mm, with a white target Kodak 90% 100 x 100mm. The optic position is axial, and the output type is NPN L/D selectable, with a switching frequency of 400Hz and a response time of 1.25ms. Operating within a voltage range of 10…30VDC, the sensors have a no-load supply current of ? 30mA and a load current of ?100mA, with a leakage current of ?10?A. The output voltage drop is ?2V@Iload=100mA, and the maximum ripple content is ?10%. The sensors are designed to handle interference from external light sources, with a tolerance of 3,000 lux for incandescent lamps and 10,000 lux for sunlight. Constructed with a nickel-plated brass housing and PBT cable exit, the sensors are robust and lightweight, weighing only 60g. They come with a 2m PVC cable for easy installation and are equipped with supplied accessories, including nuts M12 x 1. The active head material is PMMA, and the sensors operate efficiently in temperatures ranging from -25°C to +70°C, without freezing. The DM3/0N-1A Sensors are EMC compatible with EN 60947-5-2 standards and are designed to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. With mechanical protection rated at IP67, these sensors are ideal for demanding industrial environments.
