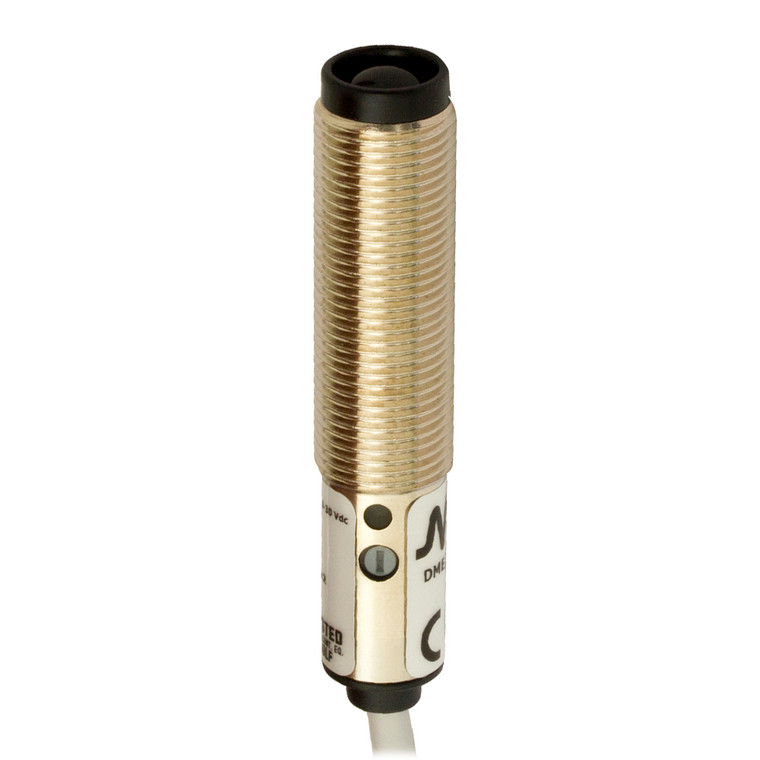

The Datasensing DM3/0N-1AAN Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection principle with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications. The sensitivity can be easily adjusted using the teach-in method, ensuring optimal performance in various environments. With a robust construction of nickel-plated brass and PBT, the sensor is built to withstand harsh conditions, offering IP67 mechanical protection.
Equipped with an NPN output type that is L/D selectable, the sensor provides flexibility in output functions. It operates efficiently within a voltage range of 10 to 30VDC, with a low no-load supply current of ?30mA and a load current capacity of ?100mA. The sensor's high switching frequency of 400Hz and quick response time of 1.25ms make it suitable for fast-paced industrial applications.
The DM3/0N-1AAN is designed with safety and reliability in mind, featuring short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. It is capable of withstanding external light interference up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight. The sensor is approved for use in hazardous environments, meeting CE cULus Ex standards.
Additional features include LED indicators for status output, a time delay before availability of ?150ms, and a durable PMMA active head material. The sensor is supplied with M12 x 1 nuts for easy installation and is compatible with M12 plug connections. Operating effectively in temperatures ranging from -25°C to +70°C, the DM3/0N-1AAN is a versatile and reliable choice for various industrial sensing applications.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 400Hz
- Response time:
- 1,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?150ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Housing Material:
- Nickel plated brass / PBT cable exit
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M12 x 1
- Dimensions:
- M12x1/L=54,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
