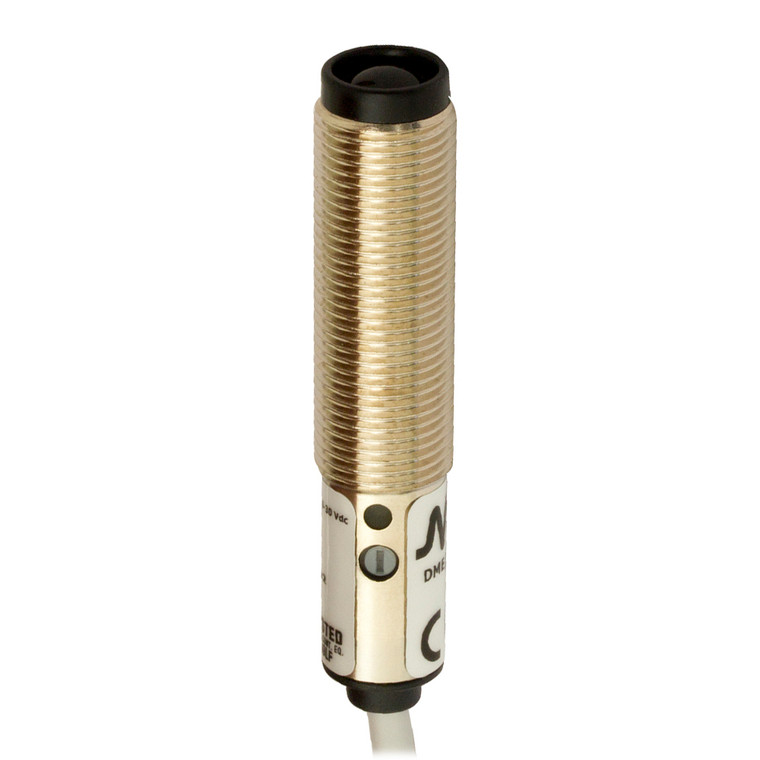

Datasensing DM3/0N-1HAN Sensors

The Datasensing DM3/0N-1HAN Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications up to 200mm. The sensors offer a high repeat accuracy of 5% and a sensitivity adjustment through a convenient teach-in method. Equipped with an NPN output type that is L/D selectable, the sensors operate at a switching frequency of 400Hz and a rapid response time of 1.25ms. They are powered by an operating voltage range of 10 to 30VDC, with a no-load supply current of ?30mA and a load current capacity of ?100mA. The sensors ensure minimal output voltage drop of ?2V at a load current of 100mA, and they feature robust protections against short-circuits, reverse polarity, and impulsive overvoltage. Constructed with a durable nickel-plated brass housing and a PMMA active head, the sensors are designed to withstand harsh environments, offering an IP67 mechanical protection rating. They are resistant to shocks and vibrations as per IEC standards and can operate in temperatures ranging from -25°C to +70°C. The sensors are equipped with LED infrared emission at 880nm and are capable of handling interference from external light sources up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight. The M12 plug connection ensures easy integration, and the sensors come with supplied accessories, including M12 x 1 nuts. With approvals from CE and cULus, and compliance with EMC compatibility standards, these sensors are a reliable choice for industrial applications requiring precise and dependable sensing capabilities.
