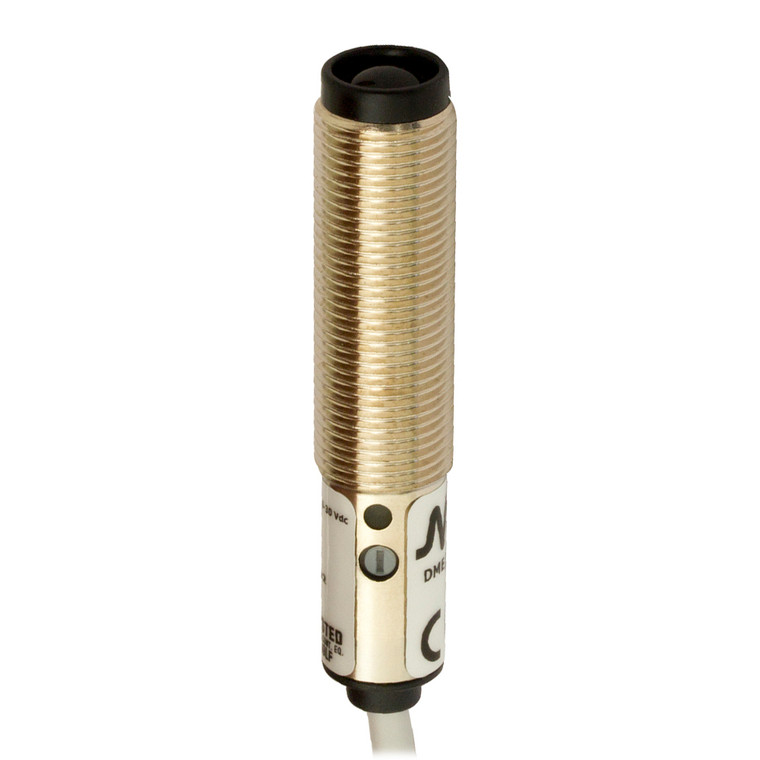

Datasensing DM3/0P-1A84AN Sensors

The Datasensing DM3/0P-1A84AN Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications up to 200mm. The sensors offer a PNP L/D selectable output type, with a sensitivity adjustment through a convenient teach-in method. They boast a high switching frequency of 400Hz and a rapid response time of 1.25ms, ensuring quick and accurate performance. Constructed with a robust nickel-plated brass housing and a PMMA active head, the sensors are built to withstand harsh environments, offering IP67 mechanical protection. They are equipped with a 3m PVC cable for easy installation and connectivity. The sensors operate within a voltage range of 10 to 30VDC, with a low no-load supply current of ?30mA and a load current capacity of ?100mA. They feature short-circuit and reverse polarity protection, as well as impulsive overvoltage protection, ensuring durability and safety. The DM3/0P-1A84AN Sensors are designed to handle external light interference up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight. They are approved for use in hazardous environments, meeting CE cULus Ex standards, and are compatible with EMC standards EN 60947-5-2. With a compact M12x1 design and supplied with M12 x 1 nuts, these sensors are easy to integrate into various systems. Operating efficiently in temperatures ranging from -25°C to +70°C, they are suitable for a wide range of industrial applications.
