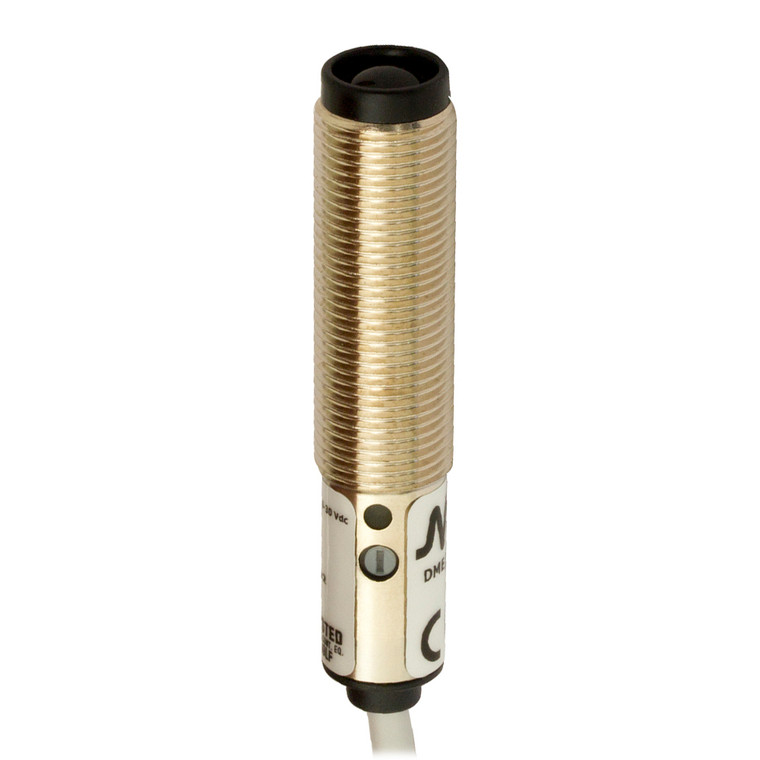

Datasensing DM3/0P-1AAN Sensors
Datasensing
$131.67
The Datasensing DM3/0P-1AAN Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a nominal sensing distance of 100mm, these sensors utilize a diffuse reflection principle, ideal for short-distance applications up to 200mm. The sensors are equipped with a teach-in sensitivity adjustment, ensuring optimal performance with a repeat accuracy of 5%.
Constructed with a robust nickel-plated brass housing and a PMMA active head, the sensors are built to withstand harsh environments, offering IP67 mechanical protection. They operate efficiently within a temperature range of -25°C to +70°C, without freezing. The sensors are powered by a 10
30VDC operating voltage, with a no-load supply current of ?30mA and a load current of ?100mA.
The DM3/0P-1AAN Sensors feature a PNP L/D selectable output type, with a switching frequency of 400Hz and a response time of 1.25ms. They are equipped with LED indicators for status output, providing clear visual feedback. The sensors are protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring reliable operation.
With approvals including CE and cULus Ex, these sensors are suitable for use in hazardous environments, classified as II 3G Ex nA IIC T6 Gc and II 3D Ex tc IIIB T85°C Dc. The sensors come with a 2m PVC cable for easy installation and are supplied with M12 x 1 nuts for secure mounting.
Ideal for applications requiring high precision and durability, the Datasensing DM3/0P-1AAN Sensors are a reliable choice for industrial automation and safety systems.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 400Hz
- Response time:
- 1,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?150ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Housing Material:
- Nickel plated brass / PBT cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M12 x 1
- Dimensions:
- M12x1/L=54,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
