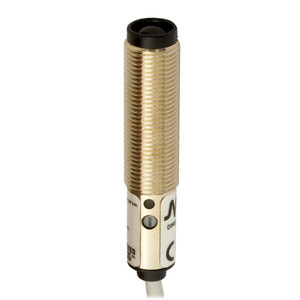

Datasensing DM3/0P-1H Sensors
Datasensing
$104.99
The Datasensing DM3/0P-1H Sensors are designed for precision and reliability in various industrial applications. Featuring models with diffuse reflection, polarized, and through-beam capabilities, these sensors offer versatile solutions for your sensing needs. With a nominal sensing distance of 100mm and a thermal drift of Sr ?10%, they ensure consistent performance. The sensors come equipped with a local and remote teach-in function for easy sensitivity adjustment, and selectable Light-on/Dark-on outputs for flexible operation.
Built to withstand harsh environments, the DM3/0P-1H Sensors boast an IP67 protection degree, safeguarding against dust and water ingress. The multifunction LED status indicator provides clear operational feedback, while complete protection against electrical damages ensures long-lasting durability. The sensors are CE and cULus listed, meeting stringent safety and quality standards.
With a switching frequency of 400Hz and a response time of 1.25ms, these sensors deliver rapid and accurate detection. They operate within a voltage range of 10
30VDC, with a no-load supply current of ?30mA and a load current of ?100mA. The robust nickel-plated brass housing and PMMA active head material ensure resilience in temperatures ranging from -25°C to +70°C.
The DM3/0P-1H Sensors are equipped with short-circuit and reverse polarity protection, as well as impulsive overvoltage protection, enhancing their reliability in demanding conditions. Their compact M12x1 design and lightweight 28g construction make them easy to integrate into existing systems. Supplied with M12 x 1 nuts, these sensors are ready for immediate installation and use.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 400Hz
- Response time:
- 1,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?150ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 28g
- Housing Material:
- Nickel plated brass
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70° C
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M12 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
