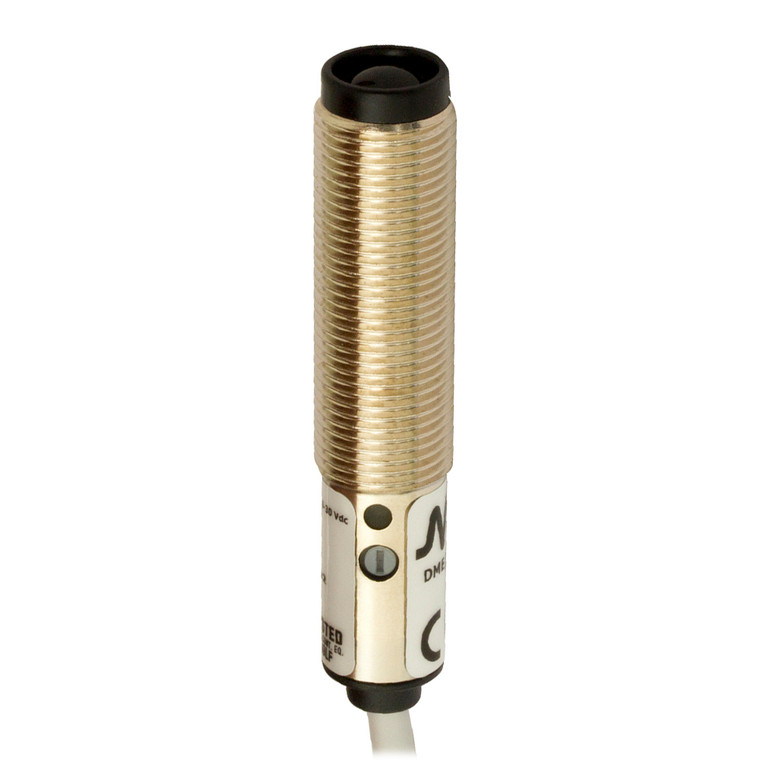

Datasensing DM3/0P-1HAN Sensors
Datasensing
$141.98
The Datasensing DM3/0P-1HAN Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications. The PNP output type is selectable for light or dark operation, providing flexibility in various environments. With a robust nickel-plated brass housing and IP67 mechanical protection, these sensors are built to withstand harsh conditions, including temperatures ranging from -25°C to +70°C.
Equipped with a teach-in sensitivity adjustment, the DM3/0P-1HAN ensures easy setup and high repeat accuracy of 5%. The sensor's LED infrared emission at 880nm and interference resistance to external light make it suitable for challenging lighting conditions, handling up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight. The M12 connection and compact dimensions (M12x1/L=65.5mm) allow for seamless integration into existing systems.
Safety and reliability are enhanced with features like short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. The sensor complies with EMC standards (EN 60947-5-2) and holds CE and cULus Ex approvals, ensuring it meets rigorous industry standards. Ideal for industrial applications, the DM3/0P-1HAN is supplied with M12 x 1 nuts for easy installation.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 400Hz
- Response time:
- 1,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?150ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Housing Material:
- Nickel plated brass
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M12 x 1
- Dimensions:
- M12x1/L=65,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
